SLT20-24VFC-1

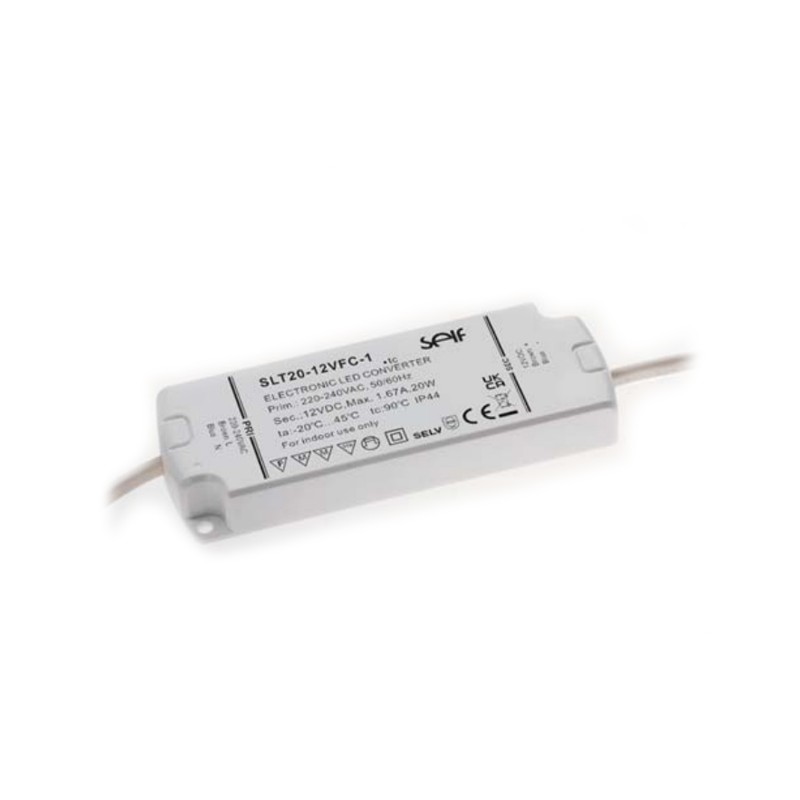

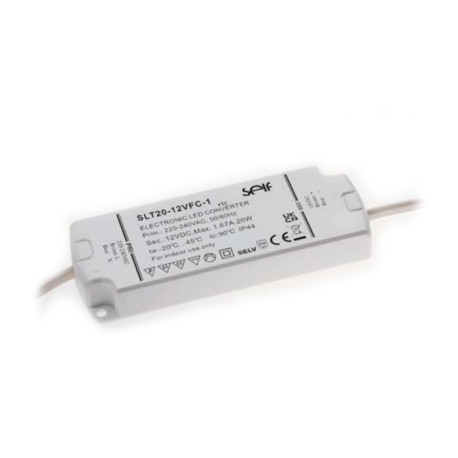

Self LED driver series SLT20-VFC-1

LED drivers in a plastic housing (IP44) with 20W, a constant voltage (CV) and protection class II. These SELV compliant devices are protected against overload, overvoltage, overtemperature as well as short circuit and are not dimmable. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLT20-12VFC-1 and SLT20-24VFC-1.

  • single output
  • output: 20W
  • input voltage: 220 to 240V AC (50/60Hz)
  • no-load power: <0,5W
  • maximal input inrush current: 15A
  • connection type: stranded wire
  • service life: 30.000h
  • operating temperature: -20 to +45°C
  • dimensions: 121x45x16mm
  • weight: 70g
SLT20-24VFC-1, Self LED drivers, 20W, IP44, constant voltage, SLT20-VFC-1 series

SLT20-24VFC-1

244409 SLT20-24VFC-1 SLT20-24VFC-1 Self LED driver series SLT20-VFC-1. LED drivers in a plastic housing (IP44) with 20W, a constant voltage (CV) and protection class II. These SELV compliant devices are protected against overload, overvoltage, overtemperature as well as short circuit and are not dimmable. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLT20-12VFC-1 and SLT20-24VFC-1. single output output: 20W input voltage: 220 to 240V AC (50/60Hz) no-load power: &lt;0,5W maximal input inrush current: 15A connection type: stranded wire service life: 30.000h operating temperature: -20 to +45°C dimensions: 121x45x16mm weight: 70g

Specifications

manufacturer
Manufacturer's name SLT20-24VFC-1
Output voltage [V] 24
Efficiency [%] 83
Output current [A] 0,84
Output power [W] 20
Ripple [mVp-p] 1200
Data Sheet
