SLT20-24VF-2S

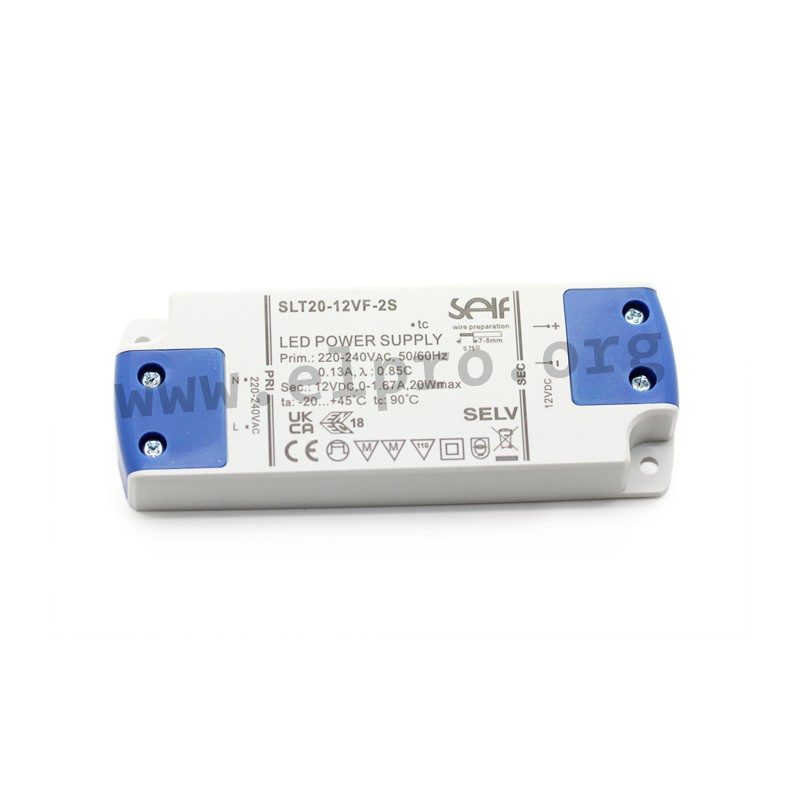

Self LED driver series SLT20-VF-2S

LED drivers in a plastic housing (IP20) with 20W, protection class II and a constant current. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLT20-12VF-2S and SLT20-24VF-2S.

  • single output
  • output: 20W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 15A
  • no-load power: <0,5W
  • service life: 30.000h (Tc=85°C)
  • operating temperature: -20 to +45°C
  • dimensions: 121x45x16mm
  • weight: 70g
SLT20-24VF-2S, Self LED drivers, 20W, IP20, constant voltage, SLT20-VF-2S series

SLT20-24VF-2S

241523 SLT20-24VF-2S SLT20-24VF-2S Self LED driver series SLT20-VF-2S. LED drivers in a plastic housing (IP20) with 20W, protection class II and a constant current. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLT20-12VF-2S and SLT20-24VF-2S. single output output: 20W input voltage: 220 to 240V AC maximal input inrush current: 15A no-load power: &lt;0,5W service life: 30.000h (Tc=85°C) operating temperature: -20 to +45°C dimensions: 121x45x16mm weight: 70g

Specifications

manufacturer
Manufacturer's name SLT20-24VF-2S
Output voltage [V] 24
Efficiency [%] 83
Output current range [A] 0...0,084
Output power [W] 20
Ripple [mVp-p] 1200
Data Sheet

Unit price

8,89 €

Volume discounts

Quantity Unit price
100 + 7,59 €
50 + 7,89 €

Stock: 271
Next incoming goods:
CW 14/2025
200 units

Further delivery:
CW 16/2025
