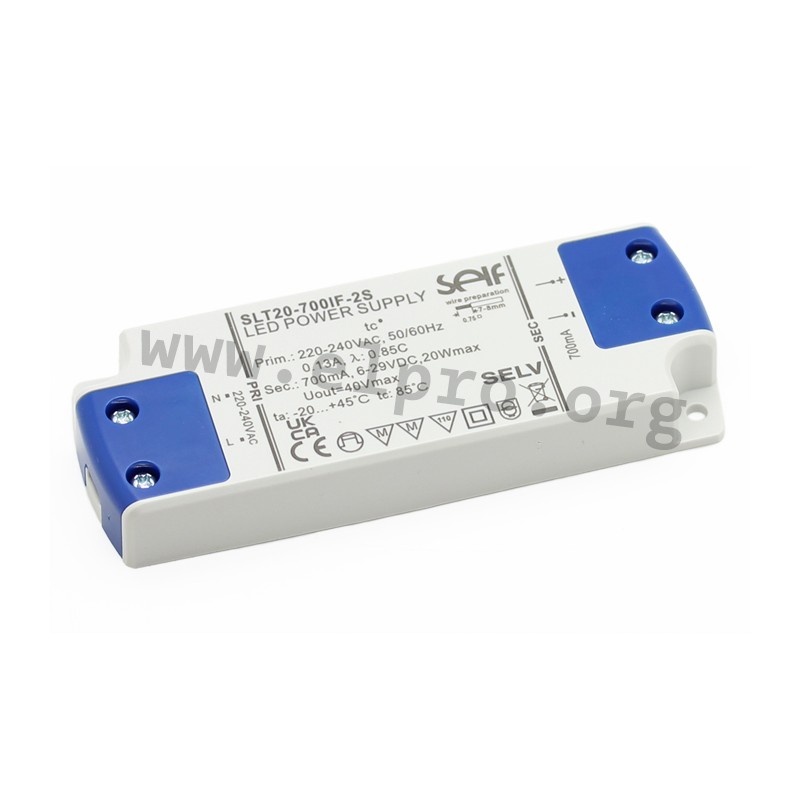

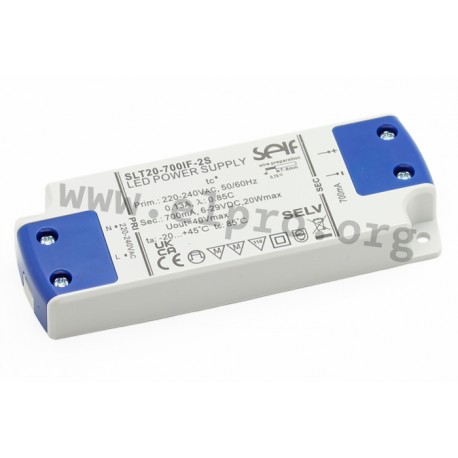

SLT20-700IF-2S

Self LED driver series SLT20-IF-2S

LED drivers in a plastic housing (IP20) with 20W, protection class II and a constant current. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLT20-350IF-2S and SLT20-700IF-2S.

  • single output
  • output: 20W
  • input voltage: 220 to 240V AC
  • no-load power: <0,5W
  • service life: 30.000h (Tc=85°C)
  • operating temperature: -20 to +45°C
  • dimensions: 121x45x16mm
  • weight: 57,1g
SLT20-700IF-2S, Self LED drivers, 20W, IP20, constant current, SLT20-IF-2S series

SLT20-700IF-2S

241527 SLT20-700IF-2S SLT20-700IF-2S Self LED driver series SLT20-IF-2S. LED drivers in a plastic housing (IP20) with 20W, protection class II and a constant current. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLT20-350IF-2S and SLT20-700IF-2S. single output output: 20W input voltage: 220 to 240V AC no-load power: &lt;0,5W service life: 30.000h (Tc=85°C) operating temperature: -20 to +45°C dimensions: 121x45x16mm weight: 57,1g

Specifications

manufacturer
Manufacturer's name SLT20-700IF-2S
Output current [mA] 700
Efficiency [%] 79
Output power [W] 20
Output voltage range [V] 6...29
Data Sheet

Unit price

11,19 €

Volume discounts

Quantity Unit price
100 + 9,49 €
50 + 9,99 €

Stock: 59
Further delivery:
CW 16/2025
