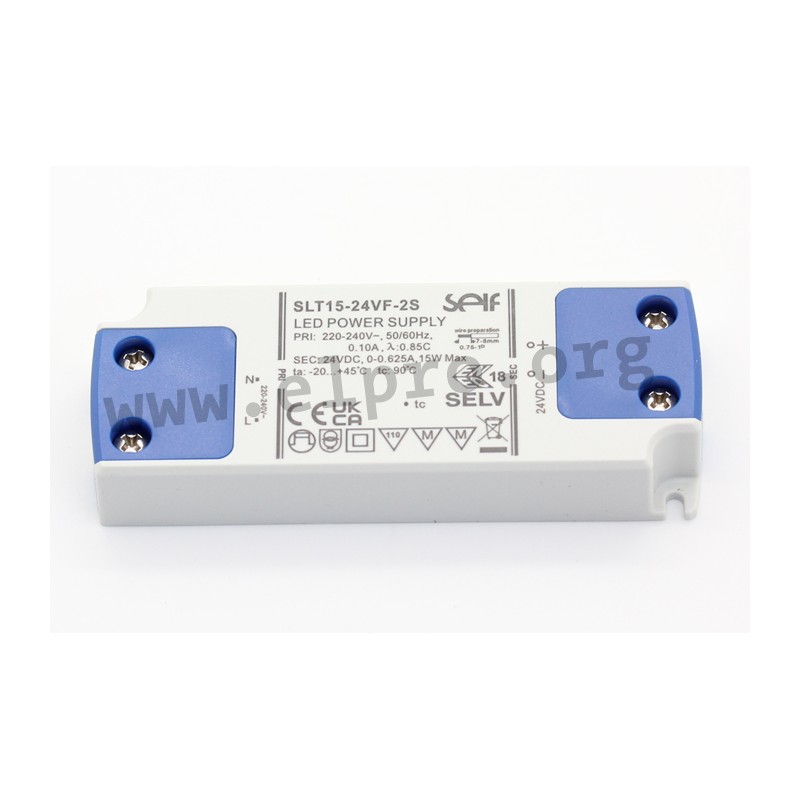

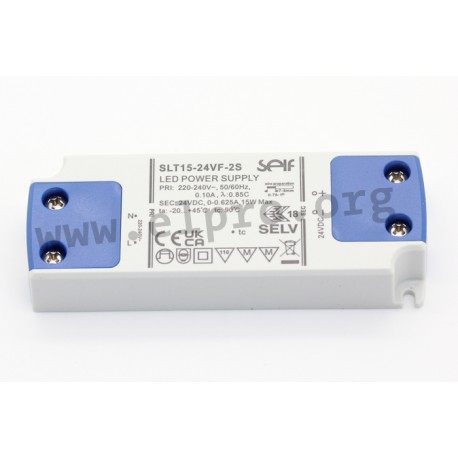

SLT15-12VF2S

Self LED driver series SLT15-VF-2S

LED drivers in a plastic housing (IP20) with 15W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: SLT15-12VF2S and SLT15-24VF2S.

  • single output
  • output: 15W
  • input voltage: 220 to 240V AC
  • no-load power: <0,5W
  • service life: 30.000h (Tc = 90°C)
  • operating temperature: -20 to +45°C
  • dimensions: 108x41x16mm
  • weight: 60g
SLT15-12VF2S, Self LED drivers, 15W, IP20, constant voltage, SLT15-VF-2S series

SLT15-12VF2S

241524 SLT15-12VF2S SLT15-12VF2S Self LED driver series SLT15-VF-2S. LED drivers in a plastic housing (IP20) with 15W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, short circuit as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: SLT15-12VF2S and SLT15-24VF2S. single output output: 15W input voltage: 220 to 240V AC no-load power: &lt;0,5W service life: 30.000h (Tc = 90°C) operating temperature: -20 to +45°C dimensions: 108x41x16mm weight: 60g

Specifications

Output voltage [V] 12
Efficiency [%] 81
Output current range [A] 0...1,25
Output power [W] 15
Ripple [mVp-p] 900
Data Sheet
