SLT100-24VL-E

Self LED driver series SLT100-VL-E

LED drivers in a metal housing (IP20) with 100W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overvoltage, overtemperature as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series: SLT100-12VL-E and SLT100-24VL-E.

  • single output
  • output: 100W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • service life SLT-100-12VL-E: 40.000h (Tc = 80°C)
  • service life SLT-100-24VL-E: 50.000h (Tc = 80°C)
  • dimensions: 185x60x31mm
  • weight: 316g

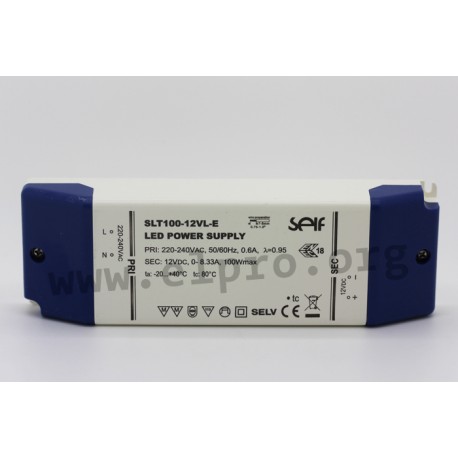

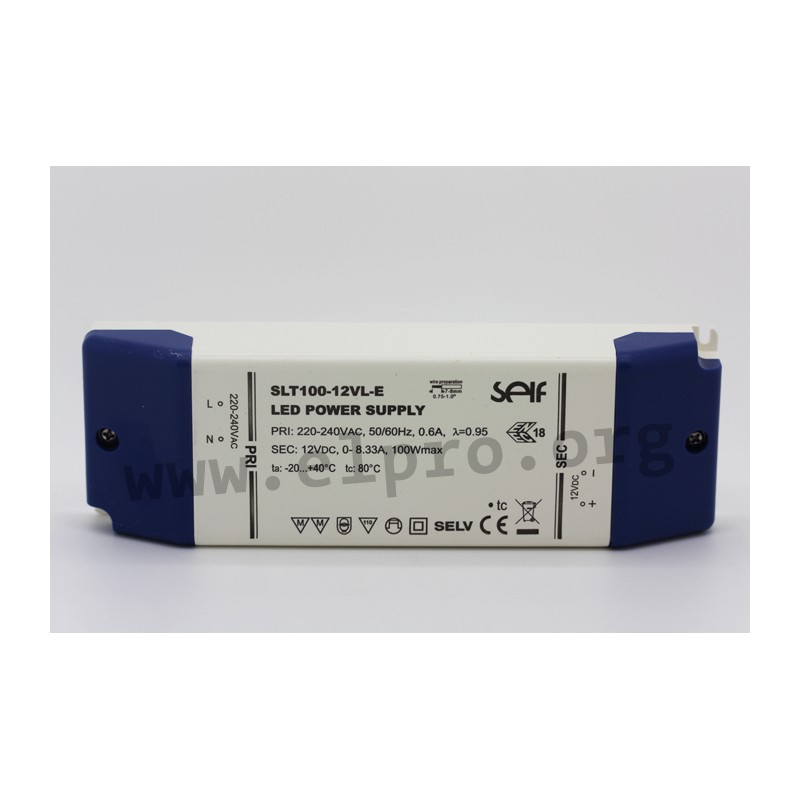

SLT100-VL-E series by Self

SLT100-24VL-E

109138 SLT100-24VL-E SLT100-24VL-E Self LED driver series SLT100-VL-E. LED drivers in a metal housing (IP20) with 100W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting&nbsp;applications and are protected against overload, overvoltage, overtemperature as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series:&nbsp;SLT100-12VL-E and SLT100-24VL-E. single output output: 100W input voltage: 220 to 240V AC maximal input inrush current: 50A no-load power: &lt;0,5W service life SLT-100-12VL-E: 40.000h (Tc = 80&deg;C) service life SLT-100-24VL-E: 50.000h (Tc = 80&deg;C) dimensions: 185x60x31mm weight: 316g

Specifications

manufacturer
Manufacturer's name SLT100-24VL-E
Output voltage [V] 24
Efficiency [%] 90,3
Output current [A] 0...4,17
Output power [W] 100
Ripple [mVp-p] 800
Data Sheet

Unit price

32,89 €

Volume discounts

Quantity Unit price
100 + 28,89 €
50 + 30,19 €

Stock: 313
Further delivery:
CW 11/2025
