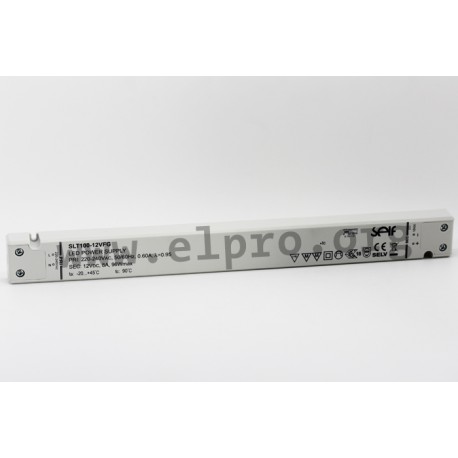

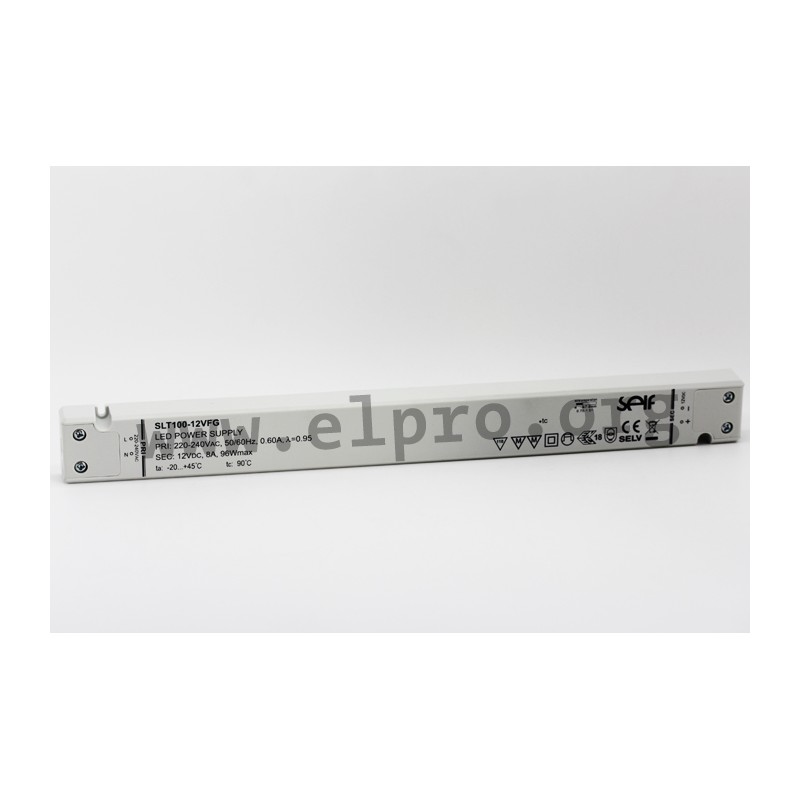

SLT100-12VFG

Self LED driver series SLT100-VFG

LED drivers in a plastic housing (IP20) with 100W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature, overvoltage as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the type SLT100-12VFG of this Self series.

  • single output
  • output: 100W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 35,8A
  • no-load power: <0,5W
  • service life: 50.000h (Tc = 85°C)
  • operating temperature: -20 to +45°C
  • dimensions: 298x29,8x16,5mm
  • weight: 216g
SLT100-12VFG

SLT100-12VFG

110871 SLT100-12VFG SLT100-12VFG Self LED driver series SLT100-VFG&nbsp;. LED drivers in a plastic housing (IP20) with 100W, a constant voltage and protection class II. These SELV compliant devices are&nbsp;suitable for LED lighting applications and are protected&nbsp;against overload, overtemperature, overvoltage as well as short circuit. They are not dimmable and comply with&nbsp;EN55015, EN61347-1 as well as EN61347-2-13. We offer the&nbsp;type&nbsp;SLT100-12VFG of this Self series. single output output: 100W input voltage: 220 to 240V AC maximal input inrush current: 35,8A no-load power: &lt;0,5W service life: 50.000h (Tc&nbsp;= 85&deg;C)&nbsp; operating temperature: -20 to +45&deg;C dimensions: 298x29,8x16,5mm weight: 216g

Specifications

manufacturer
Manufacturer's name SLT100-12VFG
Output voltage [V] 12
Efficiency [%] 91,5
Output current [A] 0...8,33
Output power [W] 96
Ripple [mVp-p] 800
Data Sheet

Unit price

29,59 €

Volume discounts

Quantity Unit price
100 + 26,09 €
50 + 27,19 €

Stock: 209
Next incoming goods:
CW 49/2024
300 units

Further delivery:
CW 11/2025
