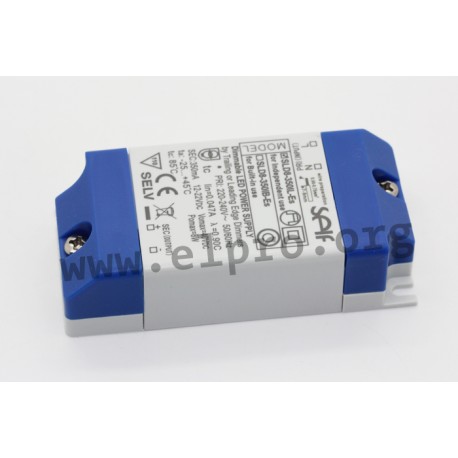

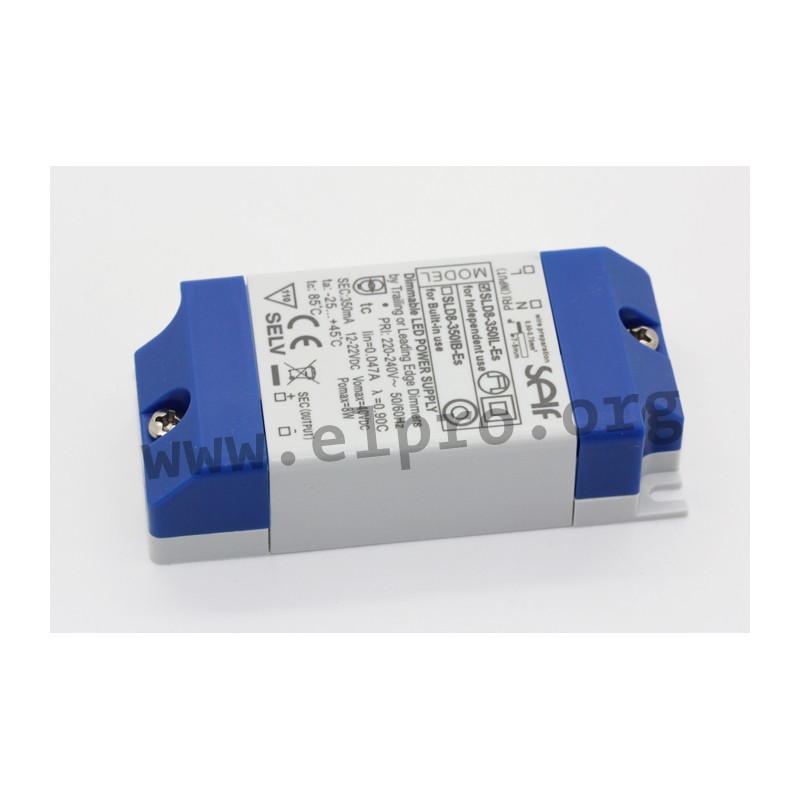

SLD8-350IL-ES

Self LED driver series SLD8-IL-ES

LED drivers in a plastic case (IP20) with 8W, a constant current and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against short circuit, overload as well as overvoltage. They are dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2. We offer the type SLD8-350IL-ES of this Self series.

  • single output
  • output: 8W
  • input voltage: 220 to 240V AC
  • operating temperature: -20 to +50°C
  • service life (Tc=85°C): 50.000h
  • dimensions: 85,3x41x22mm
  • weight: 92g
SLD8-350IL-ES, Self LED drivers, 8W, IP20, constant current, dimmable, SLD8-IL-ES series

SLD8-350IL-ES

235467 SLD8-350IL-ES SLD8-350IL-ES Self LED driver series SLD8-IL-ES. LED drivers in a plastic case (IP20) with 8W, a constant current and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against short circuit, overload as well as overvoltage. They are dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2. We offer the type SLD8-350IL-ES of this Self series. single output output: 8W input voltage: 220 to 240V AC operating temperature: -20 to +50°C service life (Tc=85°C): 50.000h dimensions: 85,3x41x22mm weight: 92g

Specifications

manufacturer
Manufacturer's name SLD8-350IL-ES
Efficiency [%] ≥73
Output current [A] 0,35
Output power [W] 8
Ripple & noise [%] ≤3
Output voltage range [V] 12...22
Data Sheet

Unit price

11,09 €

Volume discounts

Quantity Unit price
100 + 9,39 €
50 + 9,79 €

Stock: 50
Further delivery:
CW 16/2025
