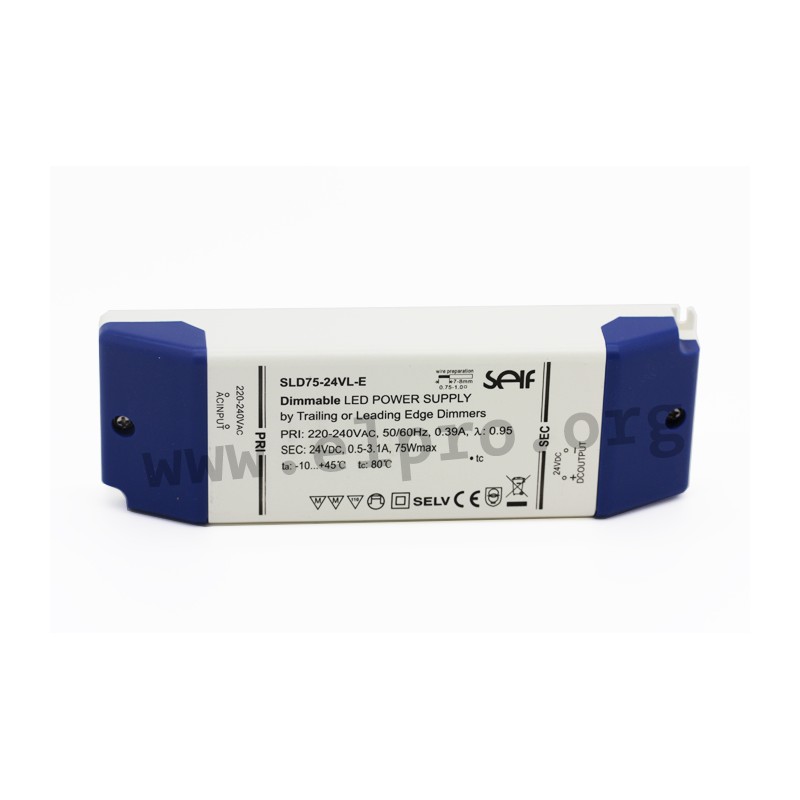

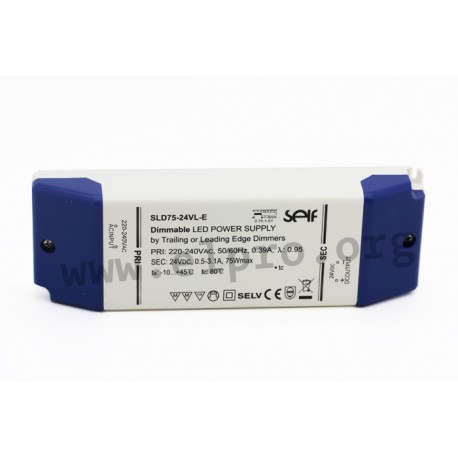

SLD75-24VL-E

Self LED driver series SLD75-VL-E

Flickerfree LED drivers in a plastic housing (IP20) with 75W, a constant voltage and protection class II. These SELV compliant devices have a TRIAC dimmer (phase-cut dimmers) and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN55015, EN61347-1, EN61347-2-13 as well as EN61000-3-2. We offer the following types of this Self series: SLD75-12VL-E and SLD75-24VL-E.

  • single output
  • output: 75W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 30A
  • service life: 30.000h (Tc = 45°C)
  • operating temperature: -10 to +45°C
  • dimensions: 185x60x31mm
  • weight: 430g
SLD75-24VL-E

SLD75-24VL-E

109135 SLD75-24VL-E SLD75-24VL-E Self LED driver series SLD75-VL-E. Flickerfree LED drivers in a plastic housing (IP20) with 75W, a constant voltage and protection class II. These SELV compliant devices have a TRIAC dimmer (phase-cut dimmers) and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN55015, EN61347-1, EN61347-2-13 as well as EN61000-3-2. We offer the following types of this Self series: SLD75-12VL-E and SLD75-24VL-E. single output output: 75W input voltage: 220 to 240V AC maximal input inrush current: 30A service life: 30.000h (Tc = 45°C) operating temperature: -10 to +45°C dimensions: 185x60x31mm weight: 430g

Specifications

manufacturer
Manufacturer's name SLD75-24VL-E
Output voltage [V] 24
Efficiency [%] 86,5
Output current [A] 0,5...3,1
Output power [W] 75
Ripple [mVp-p] 300
Data Sheet

Unit price

38,69 €

Volume discounts

Quantity Unit price
100 + 35,49 €
50 + 36,89 €

Stock: 708
Next incoming goods:
CW 04/2025
510 units

Further delivery:
CW 11/2025
