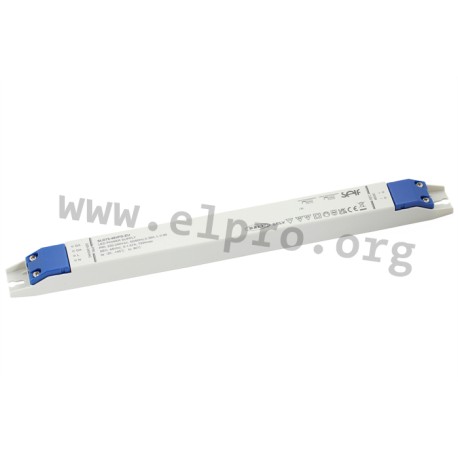

SLD75-24VFD-EU

Self LED driver series SLD75-VFD-EU

LED drivers in a plastic housing (IP20) with 75W, protection class I, a low no-load power (<0,5W) and a constant voltage. These SELV compliant devices have a DALI 2.0 interface and are protected against overload, overtemperature, short circuit as well as overvoltage. They are dimmable, suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLD75-24VFD-EU and SLD75-48VFD-EU.

  • single output
  • output: 75W
  • input voltage: 198 to 264V AC (50/60Hz), 220 to 280V DC
  • maximal input inrush current: 50A
  • service life: 50.000h
  • operating temperature: -20 to +45°C
  • dimensions: 354x30x22
  • weight: 310g
SLD75-24VFD-EU, Self LED drivers, 75W, IP20, constant voltage, dimmable, DALI 2.0 interface, SLD75-VFD-EU series

SLD75-24VFD-EU

242203 SLD75-24VFD-EU SLD75-24VFD-EU Self LED driver series SLD75-VFD-EU. LED drivers in a plastic housing (IP20) with 75W, protection class I, a low no-load power (&lt;0,5W) and a constant voltage. These SELV compliant devices have a DALI 2.0 interface and are protected against overload, overtemperature, short circuit as well as overvoltage. They are dimmable, suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLD75-24VFD-EU and SLD75-48VFD-EU. single output output: 75W input voltage: 198 to 264V AC (50/60Hz), 220 to 280V DC maximal input inrush current: 50A service life: 50.000h operating temperature: -20 to +45°C dimensions: 354x30x22 weight: 310g

Specifications

manufacturer
Manufacturer's name SLD75-24VFD-EU
Output voltage [V] 24
Efficiency [%] 92,5
Output current range [A] 0...3,13
Output power [W] 75
Ripple [mVp-p] 400
Data Sheet

Unit price

47,39 €

Volume discounts

Quantity Unit price
100 + 43,19 €
50 + 45,09 €

Stock: 77
Further delivery:
CW 11/2025
