SLD35-1000ILA-UN1

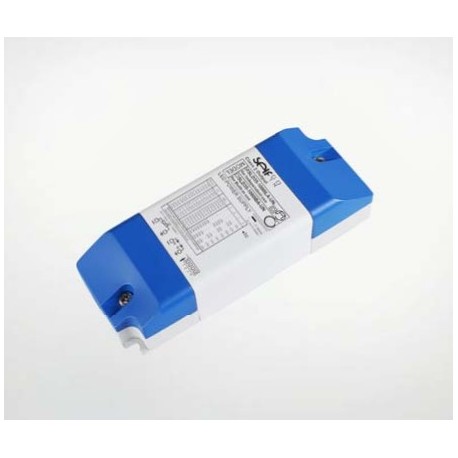

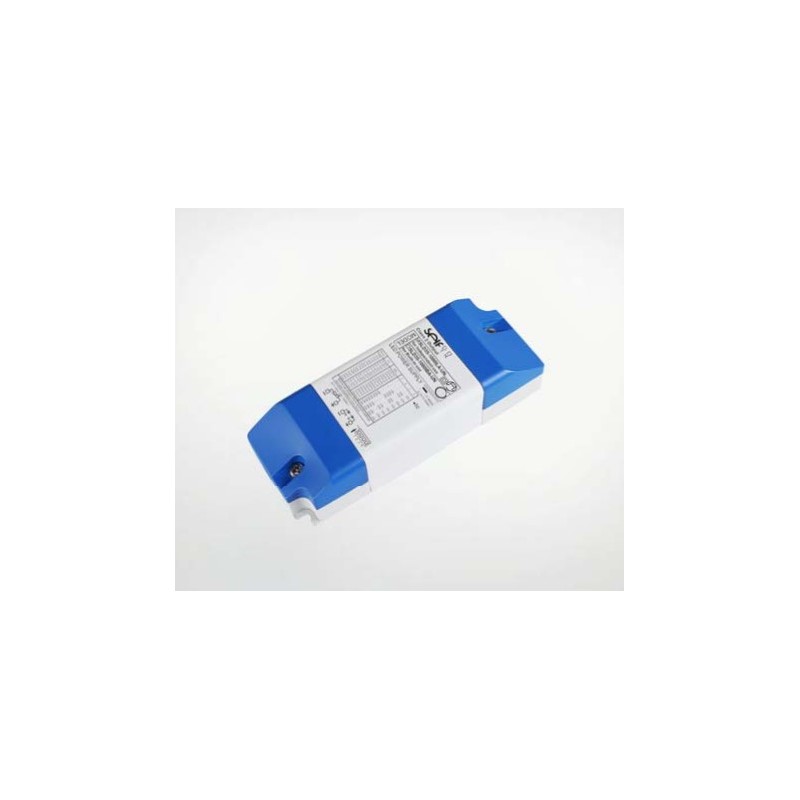

Self LED driver series SLD35-ILA-UN1

Flickerfree LED drivers in a plastic housing (IP20) with 35W and a constant current (selectable through a DIL switch). These SELV compliant devices have a dimming function (1 to 10V) and are protected against short circuit, overload, overvoltage as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 as well as protection class II. We offer the type SLD35-1000ILA-UN1 of this Self series.

  • single output
  • output: 35W
  • input voltage: 110/120 to 277V AC
  • input inrush current: 12A
  • operating temperature 110 to 277V: -25 to +40°C
  • operating temeprature 120 to 277V: -25 to +45°C
  • service life (Tc=40/45°C): 50.000h
  • weight: 155g
SLD35-1000ILA-UN1, Self LED drivers, 35W, IP20, constant current, dimmable, SLD35-ILA-UN1 series

SLD35-1000ILA-UN1

235469 SLD35-1000ILA-UN1 SLD35-1000ILA-UN1 Self LED driver series SLD35-ILA-UN1. Flickerfree LED drivers in a plastic housing (IP20) with 35W and a constant current (selectable through a DIL switch). These SELV compliant devices have a dimming function (1 to 10V) and are protected against short circuit, overload, overvoltage as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 as well as protection class II. We offer the type SLD35-1000ILA-UN1 of this Self series. single output output: 35W input voltage: 110/120 to 277V AC input inrush current: 12A operating temperature 110 to 277V: -25 to +40°C operating temeprature 120 to 277V: -25 to +45°C service life (Tc=40/45°C): 50.000h weight: 155g

Specifications

manufacturer
Manufacturer's name SLD35-1000ILA-UN1
Efficiency [%] 86
Output current range [A] 0,25...1
Output power [W] 35
Output voltage range [V] 8...42
Data Sheet

Unit price

23,89 €

Volume discounts

Quantity Unit price
100 + 20,99 €
50 + 21,89 €

Stock: 30
Next incoming goods:
CW 12/2025
50 units

Further delivery:
CW 16/2025
