SLD35-1000IBD-UN

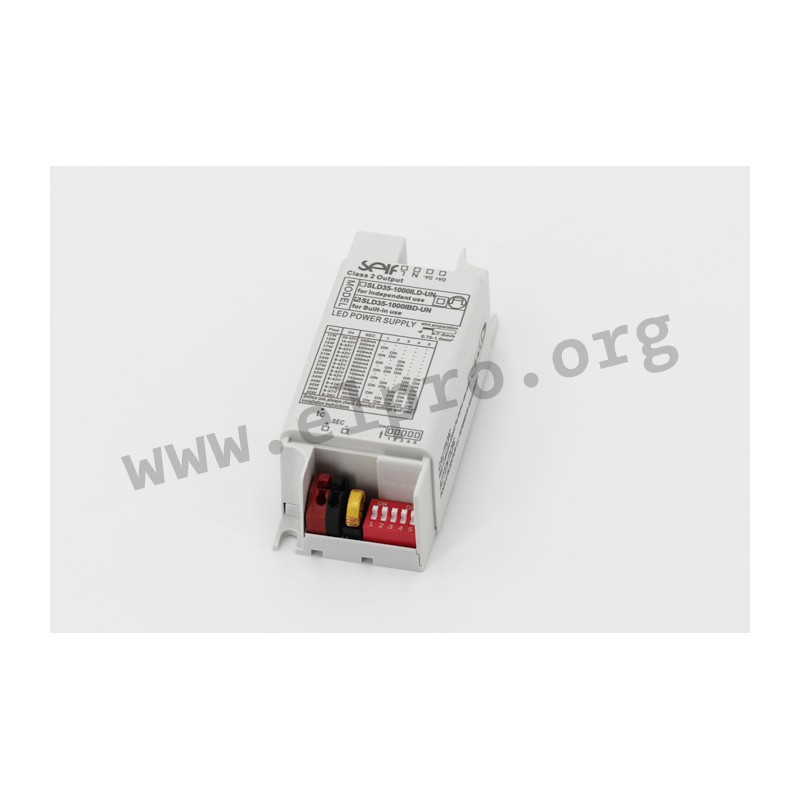

Self LED driver series SLD35-IBD-UN

LED drivers in a plastic housing (IP20) with 35W, a constant current, protection class II, a dimming function and a DALI 2.0 interface. These SELV compliant devices have a selectable output current and are protected against short circuit, overload as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, UL1310 as well as EN55015. We offer the type SLD35-1000IBD-UN as well as matching end panels 1099-000177-0131 (set of two) of this Self series.

  • single output
  • output: 35W
  • input voltage: 110 to 277V AC (50 to 60Hz)
  • input current: 4,2A
  • input inrush current: 20A
  • operating temperature: -20 to +45°C
  • service life: 50.000h
  • dimensions SLD35_: 96x42x30mm
  • dimensions 1099_: 21,5x42x30mm
  • weight: 180g

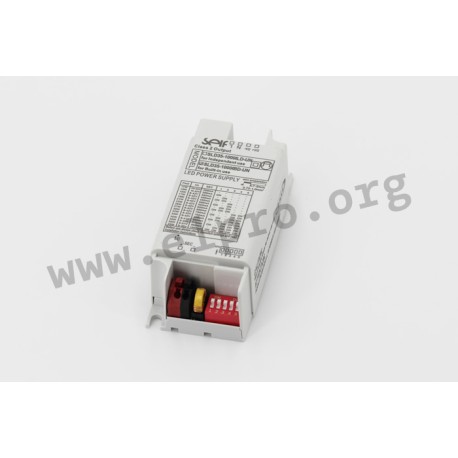

SLD35-1000IBD-UN, Self LED drivers, 35W, IP20, constant current, dimmable, DALI 2.0 interface, SLD35-IBD-UN series

SLD35-1000IBD-UN

238217 SLD35-1000IBD-UN SLD35-1000IBD-UN Self LED driver series SLD35-IBD-UN. LED drivers in a plastic housing (IP20) with 35W, a constant current, protection class II, a dimming function and a DALI 2.0 interface. These SELV compliant devices have a selectable output current and are protected against short circuit, overload as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, UL1310 as well as EN55015. We offer the type SLD35-1000IBD-UN as well as matching end panels 1099-000177-0131 (set of two) of this Self series. single output output: 35W input voltage: 110 to 277V AC (50 to 60Hz) input current: 4,2A input inrush current: 20A operating temperature: -20 to +45°C service life: 50.000h dimensions SLD35_: 96x42x30mm dimensions 1099_: 21,5x42x30mm weight: 180g

Specifications

manufacturer
Manufacturer's name SLD35-1000IBD-UN
Output voltage [V] 8...42
Efficiency [%] 87
Output current [A] 0,25...1
Output power [W] 20
Data Sheet

Unit price

26,19 €

Volume discounts

Quantity Unit price
100 + 23,09 €
50 + 24,09 €

Stock: 19
Next incoming goods:
CW 12/2025
50 units

Further delivery:
CW 16/2025
