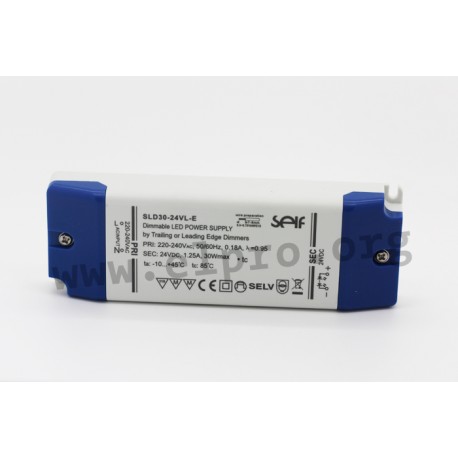

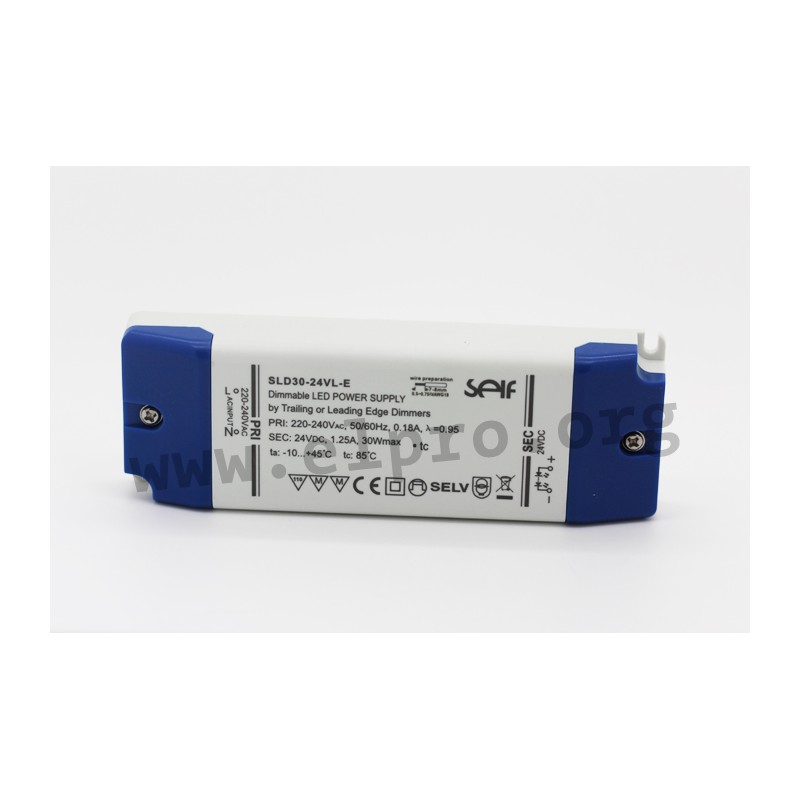

SLD30-24VL-E

Self LED driver series SLD30-VL-E

Flickerfree LED drivers in a plastic housing (IP20) with 30W, a constant current and protection class II. These SELV compliant devices have a TRIAC dimmer (phase-cut dimmer) and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series: SLT30-12VL-E and SLT30-24VL-E.

  • single output
  • output: 30W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 20A
  • service life: 30.000h (Tc = 50°C)
  • operating temperature: -20 to +50°C
  • dimensions: 145x50x22mm
  • weight: 230g
SLD30-24VL-E

SLD30-24VL-E

110901 SLD30-24VL-E SLD30-24VL-E Self LED driver series SLD30-VL-E. Flickerfree LED drivers in a plastic housing (IP20) with 30W, a constant current and protection class II. These SELV compliant devices have a TRIAC dimmer (phase-cut dimmer) and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series: SLT30-12VL-E and SLT30-24VL-E. single output output: 30W input voltage: 220 to 240V AC maximal input inrush current: 20A service life: 30.000h (Tc = 50°C) operating temperature: -20 to +50°C dimensions: 145x50x22mm weight: 230g

Specifications

manufacturer
Manufacturer's name SLD30-24VL-E
Output voltage [V] 24
Efficiency [%] 83
Output current [A] 0...1,25
Output power [W] 30
Ripple [mVp-p] 300
Data Sheet

Unit price

24,39 €

Volume discounts

Quantity Unit price
100 + 21,39 €
50 + 22,39 €

Stock: 219
Next incoming goods:
CW 14/2025
240 units

Further delivery:
CW 16/2025
