SLD30-700IL-ES

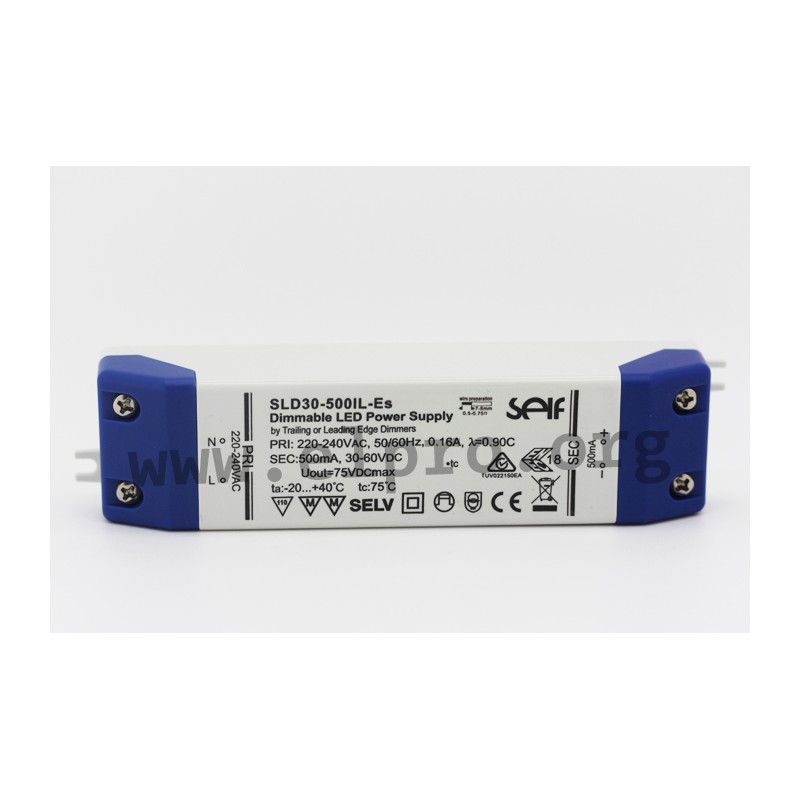

Self LED driver series SLD30-IL-ES

Flickerfree LED drivers in a plastic housing (IP20) with 30W, a constant current and protection class II. These SELV compliant devices are dimmable and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN55015, EN61000-3-2, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series: SLD30-500IL-ES, SLD30-600IL-ES and SLD30-700IL-ES.

  • single output
  • output: 30W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 19A
  • service life: 50.000h (Tc = 75°C)
  • operating temperature: -20 to +40°C
  • dimensions: 165x40x30mm
  • weight: 220g

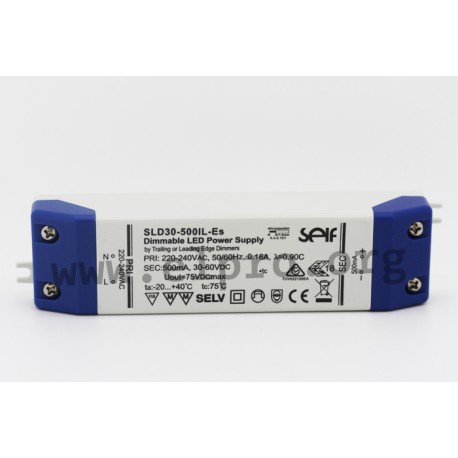

Self SLD-30-IL-ES series

SLD30-700IL-ES

111357 SLD30-700IL-ES SLD30-700IL-ES Self LED driver series SLD30-IL-ES. Flickerfree LED drivers in a plastic housing (IP20) with 30W, a constant current and protection class II. These SELV compliant devices are dimmable and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN55015, EN61000-3-2, EN61347-1 as well as EN61347-2-13. We offer the following types of this Self series: SLD30-500IL-ES, SLD30-600IL-ES and SLD30-700IL-ES. single output output: 30W input voltage: 220 to 240V AC maximal input inrush current: 19A service life: 50.000h (Tc = 75°C) operating temperature: -20 to +40°C dimensions: 165x40x30mm weight: 220g

Specifications

manufacturer
Manufacturer's name SLD30-700IL-ES
Output voltage [V] 22...40
Efficiency [%] 85
Output power [W] 30
Output current [mA] 700
Ripple & noise [mAp-p] 60
Data Sheet

Unit price

15,09 €

Volume discounts

Quantity Unit price
100 + 12,89 €
50 + 13,49 €

Stock: 139
Further delivery:
CW 11/2025
