SLD23-600IBD-UN

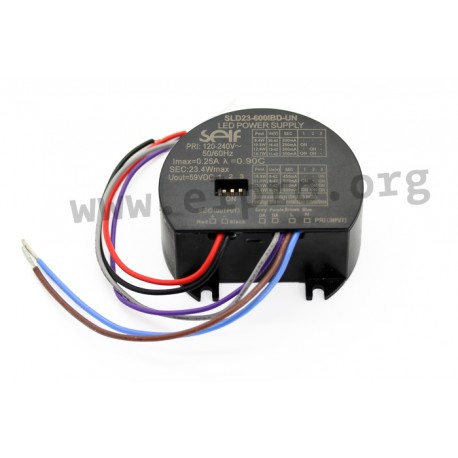

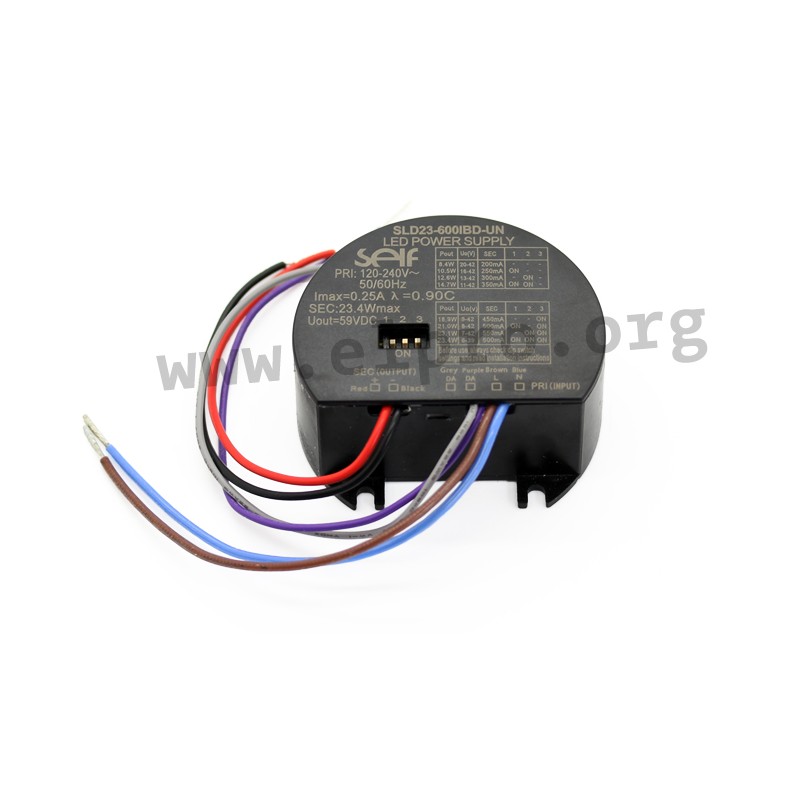

Self LED driver series SLD23-IBD-UN

LED drivers in a plastic housing (IP20) with 23W, a constant current, protection class II and a DALI 2.0 interface. These dimmable and SELV compliant devices are protected against short circuit, overload as well as overtemperature. They are suitable for LED lighting applications, have a selectable output current as well as a low no-load power consumption and comply with EN61347-1, EN61347-2-13, UL8750, UL1310 as well as EN55015. We offer the type SLD23-600IBD-UN of this Self series.

  • single output
  • output: 23W
  • input voltage: 120 to 240V AC (50 to 60Hz)
  • input current: 0,25A
  • input inrush current: 25A
  • no-load power consumption: <0,5W
  • service life: 50.000h
  • connection type: stranded wires
  • cable length: 15cm
  • dimensions: Ø64x27mm
  • weight: 120g
SLD23-600IBD-UN, Self LED drivers, 23W, IP20, constant current, dimmable, DALI 2.0 interface, SLD23-IBD-UN series

SLD23-600IBD-UN

238216 SLD23-600IBD-UN SLD23-600IBD-UN Self LED driver series SLD23-IBD-UN. LED drivers in a plastic housing (IP20) with 23W, a constant current, protection class II and a DALI 2.0 interface. These dimmable and SELV compliant devices are protected&nbsp;against short circuit, overload as well as overtemperature. They are suitable for LED lighting applications, have a selectable output current as well as a low no-load power&nbsp;consumption and comply with&nbsp;EN61347-1, EN61347-2-13, UL8750, UL1310 as well as EN55015. We offer the type SLD23-600IBD-UN of this Self series. single output output: 23W input voltage: 120 to 240V AC (50 to 60Hz) input current: 0,25A input inrush current: 25A no-load power consumption: &lt;0,5W service life: 50.000h connection type:&nbsp;stranded wires cable length: 15cm dimensions: &Oslash;64x27mm weight: 120g

Specifications

manufacturer
Manufacturer's name SLD23-600IBD-UN
Output voltage [V] 6...42
Efficiency [%] 85
Output current [A] 0,2...0,6
Output power [W] 23
Ripple & noise [%] < 3
Data Sheet

Unit price

25,99 €

Volume discounts

Quantity Unit price
100 + 22,89 €
50 + 23,89 €

Stock: 171
Further delivery:
CW 16/2025
