SLD200-48VFD-EU

Self LED driver series SLD200-VFD-EU

LED drivers in a plastic housing (IP20) with 200W, a DALI 2.0 interface, protection class II, a constant voltage (CV) and a low no-load power consumption. These SELV compliant devices are suitable for LED lighting applications and are protected against overtemperature, short circuit as well as overload. They are dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLD200-24VFD-EU and SLD200-48VFD-EU.

  • single output
  • output: 200W
  • input voltage: 220 to 240V AC (50 to 60Hz), 220 to 280V DC
  • no-load power consumption: <0,5W
  • operating temperature: -20 to +45°C
  • service life: 50.000h
  • dimensions: 402x29,8x22mm

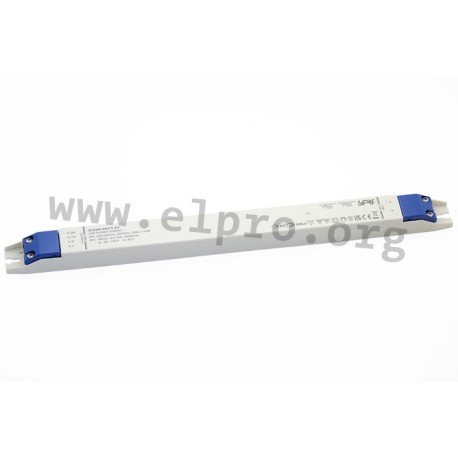

SLD200-48VFD-EU, Self LED drivers, 200W, IP20, constant voltage, dimmable, DALI 2.0 interface, SLD200-VFD-EU series

SLD200-48VFD-EU

238209 SLD200-48VFD-EU SLD200-48VFD-EU Self LED driver series SLD200-VFD-EU. LED drivers in a plastic housing (IP20) with 200W, a DALI 2.0 interface, protection class II, a constant voltage (CV) and a low no-load power consumption. These SELV compliant devices are suitable for LED lighting applications and are protected against overtemperature, short circuit as well as overload. They are dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLD200-24VFD-EU and SLD200-48VFD-EU. single output output: 200W input voltage: 220 to 240V AC (50 to 60Hz), 220 to 280V DC no-load power consumption: &lt;0,5W operating temperature: -20 to +45°C service life: 50.000h dimensions: 402x29,8x22mm

Specifications

manufacturer
Manufacturer's name SLD200-48VFD-EU
Output voltage [V] 48
Efficiency [%] 93,5
Output current [A] 4,16
Output power [W] 200
Ripple [mVp-p] 600
Data Sheet

Unit price

69,79 €

Volume discounts

Quantity Unit price
100 + 63,69 €
50 + 66,49 €

Stock: 42
Further delivery:
CW 11/2025
