SLD20-700IL-ES

Self LED driver series SLD20-IL-ES

Flickerfree LED drivers in a plastic housing (IP20) with 20W, a constant current and protection class II. These SELV compliant devices are dimmable and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the follwing types of this Self series: SLD20-350IL-ES, SLD20-500IL-ES and SLD20-700IL-ES.

  • single output
  • output: 20W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 2A
  • operating temperature: -20 to +40°C
  • service life: 35.000h (Tc = 85°C)
  • dimensions: 121x45x20mm
  • weight: 75g

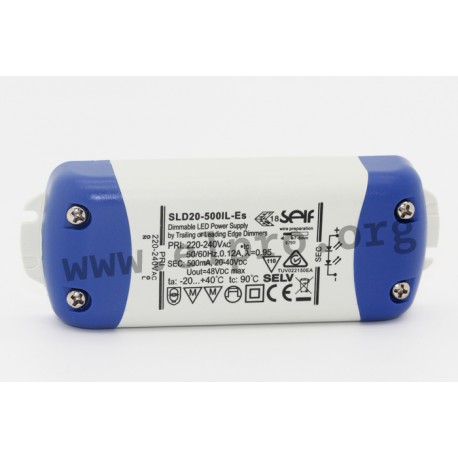

Self SLD20-IL-ES series

SLD20-700IL-ES

111354 SLD20-700IL-ES SLD20-700IL-ES Self LED driver series SLD20-IL-ES. Flickerfree LED drivers in a plastic housing (IP20) with 20W, a constant current and protection class II. These SELV compliant devices are dimmable and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the follwing types of this Self series: SLD20-350IL-ES, SLD20-500IL-ES and SLD20-700IL-ES. single output output: 20W input voltage: 220 to 240V AC maximal input inrush current: 2A operating temperature: -20 to +40°C service life: 35.000h (Tc = 85°C) dimensions: 121x45x20mm weight: 75g

Specifications

manufacturer
Manufacturer's name SLD20-700IL-ES
Output voltage [V] 15...29
Ripple [mAp-p] 100
Output current [mA] 700
Efficiency [%] 78,5
Output power [W] 20
Data Sheet

Unit price

11,19 €

Volume discounts

Quantity Unit price
100 + 9,59 €
50 + 9,99 €

Stock: 54
Further delivery:
CW 11/2025
