SLD20-500IBD-UN

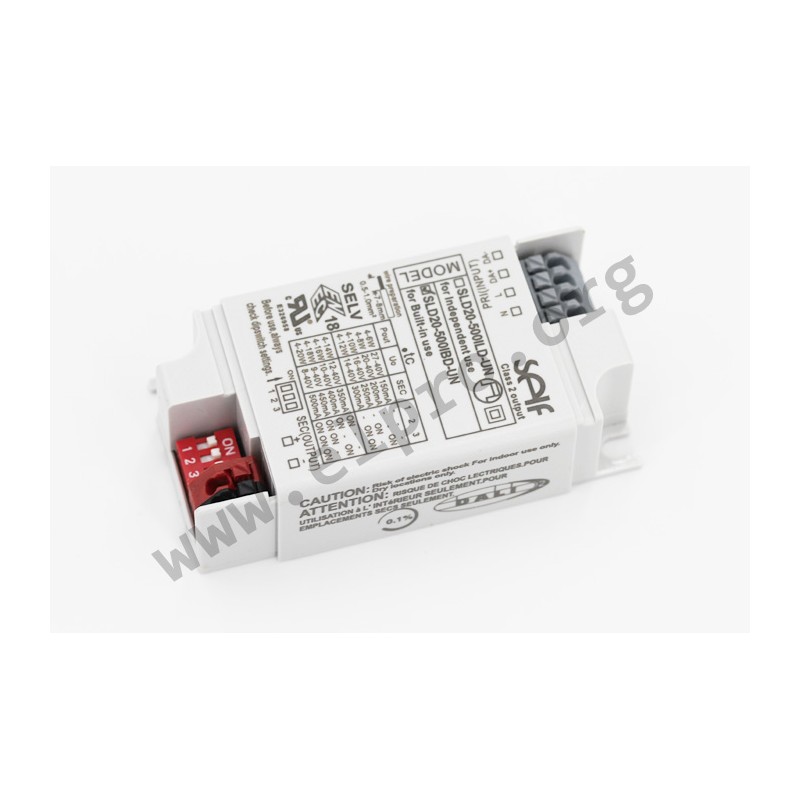

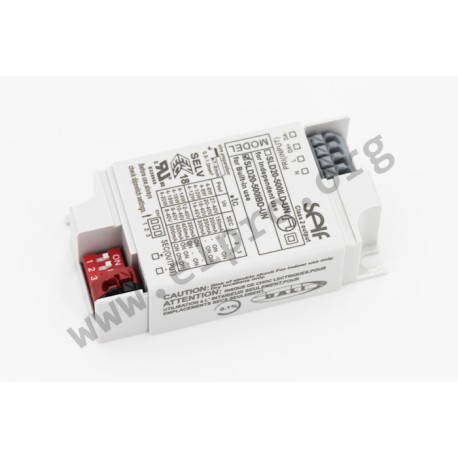

Self LED driver series SLD20-IBD-UN

LED drivers in a plastic housing (IP20) with 20W, a constant current, a DALI 2.0 interface, protection class II and a selectable output current. These SELV compliant devices are suitable for LED lighting applications and are protected against short circuit, overload as well as overtemperature. They are dimmable and comply with EN61347-1, EN61347-2-13, UL1310 as well as EN55015. We offer the type SLD20-500IBD-UN as well as matching end panels 1099-013114-0131 (set of two) of this Self series.

  • single output
  • output: 20W
  • input voltage: 110 to 277V AC (50 to 60Hz)
  • input current: 2,2A
  • input inrush current: 20A
  • operating temperature: -20 to +45°C
  • service life: 50.000h
  • dimensions SLD20_: 78,7x41x22mm
  • dimensions 1099_: 12,5x41x22mm
  • weight: 95g
SLD20-500IBD-UN, Self LED drivers, 20W, IP20, constant current, dimmable, DALI 2.0 interface, SLD20-IBD-UN series

SLD20-500IBD-UN

238213 SLD20-500IBD-UN SLD20-500IBD-UN Self LED driver series SLD20-IBD-UN. LED drivers in a plastic housing (IP20) with 20W, a constant current, a DALI 2.0 interface, protection class II and a selectable output current. These SELV compliant devices are suitable for LED lighting applications and are protected against short circuit, overload as well as overtemperature. They are dimmable and comply with EN61347-1, EN61347-2-13, UL1310 as well as EN55015. We offer the type SLD20-500IBD-UN as well as matching end panels 1099-013114-0131 (set of two) of this Self series. single output output: 20W input voltage: 110 to 277V AC (50 to 60Hz) input current: 2,2A input inrush current: 20A operating temperature: -20 to +45°C service life: 50.000h dimensions SLD20_: 78,7x41x22mm dimensions 1099_: 12,5x41x22mm weight: 95g

Specifications

manufacturer
Manufacturer's name SLD20-500IBD-UN
Output voltage [V] 8...40
Efficiency [%] 84
Output current [A] 0,15...0,5
Output power [W] 20
Data Sheet

Unit price

22,49 €

Volume discounts

Quantity Unit price
100 + 19,79 €
50 + 20,69 €

Stock: 73
Next incoming goods:
CW 49/2024
100 units

Further delivery:
CW 12/2025
