SLD150-24VFD-EU

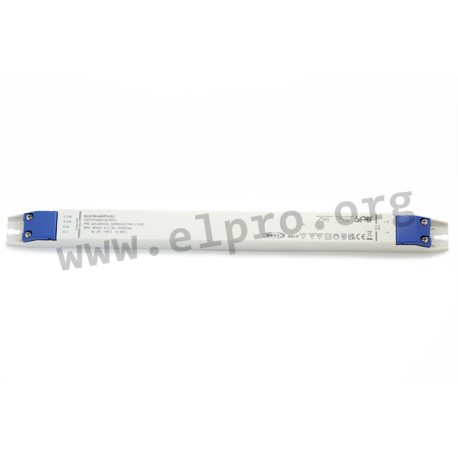

Self LED driver series SLD150-VFD-EU

LED drivers in a plastic housing (IP20) with 150W, a constant voltage, protection class II, a low no-load power and a DALI 2.0 interface. These SELV compliant devices are suitable for LED applications and are protected against short circuit, overtemperature as well as overload. They are dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLD150-24VFD-EU and SLD150-48VFD-EU.

  • single output
  • output: 150W
  • input voltage: 220 to 240V AC (50 to 60Hz), 220 to 280V DC
  • no-load power consumption: <0,5W
  • operating temperature: -20 to +45°C
  • service life: 50.000h
  • dimensions: 402x29,8x22mm
SLD150-24VFD-EU, Self LED drivers, 150W, IP20, constant voltage, dimmable, DALI 2.0 interface, SLD150-VFD-EU series

SLD150-24VFD-EU

238206 SLD150-24VFD-EU SLD150-24VFD-EU Self LED driver series SLD150-VFD-EU. LED drivers in a plastic housing (IP20) with 150W, a constant voltage, protection class II, a low no-load power and a DALI 2.0 interface. These SELV compliant devices are suitable for LED applications and are protected against short circuit, overtemperature as well as overload. They are dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLD150-24VFD-EU and SLD150-48VFD-EU. single output output: 150W input voltage: 220 to 240V AC (50 to 60Hz), 220 to 280V DC no-load power consumption: &lt;0,5W operating temperature: -20 to +45°C service life: 50.000h dimensions: 402x29,8x22mm

Specifications

manufacturer
Manufacturer's name SLD150-24VFD-EU
Output voltage [V] 24
Efficiency [%] 92,5
Output current [A] 6,25
Output power [W] 150
Ripple [mVp-p] 400
Data Sheet

Unit price

63,29 €

Volume discounts

Quantity Unit price
100 + 57,79 €
50 + 60,29 €

Stock: 58
Further delivery:
CW 12/2025
