SLD15-24VL-E

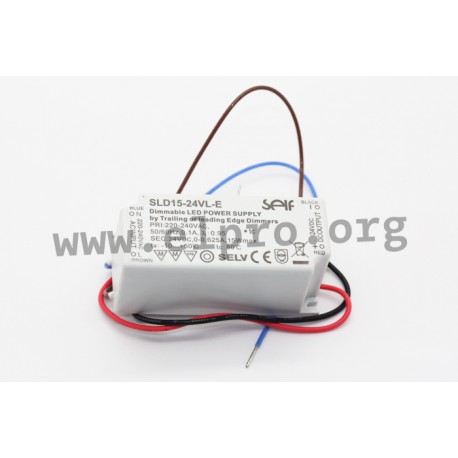

Self LED driver series SLD15-VL-E

Flickerfree LED drivers in a plastic case (IP20) with 15W, a constant voltage (CV), a triac dimmer and protection class II. These SELV compliant devices are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 and EN61000-3-2. We offer the type SLD-15-24VL-E of this Self series.

  • single output
  • output: 15W
  • input voltage: 220 to 240V AC
  • input inrush current: 20A
  • operating temperature: -20 to +50°C
  • nominal life-time (Tc=50°C): 30.000h
  • dimensions: 84x37x34mm
  • weight: 180g
SLD15-24VL-E, Self LED drivers, 15W, IP20, constant voltage, AC dimmable, SLD15-VL-E series

SLD15-24VL-E

126926 SLD15-24VL-E SLD15-24VL-E Self LED driver series SLD15-VL-E. Flickerfree LED drivers in a plastic case (IP20) with 15W, a constant voltage (CV), a triac dimmer and protection class II. These SELV compliant devices are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 and EN61000-3-2. We offer the type SLD-15-24VL-E of this Self series. single output output: 15W input voltage: 220 to 240V AC input inrush current: 20A operating temperature: -20 to +50°C nominal life-time (Tc=50°C): 30.000h dimensions: 84x37x34mm weight: 180g

Specifications

manufacturer
Manufacturer's name SLD15-24VL-E
Output voltage [V] 24
Efficiency [%] 78,5
Output current range [A] 0,2...0,625
Output power [W] 15
Ripple [mVp-p] 300
Data Sheet

Unit price

23,99 €

Volume discounts

Quantity Unit price
100 + 21,09 €
50 + 21,99 €

Stock: 58
Further delivery:
CW 16/2025
