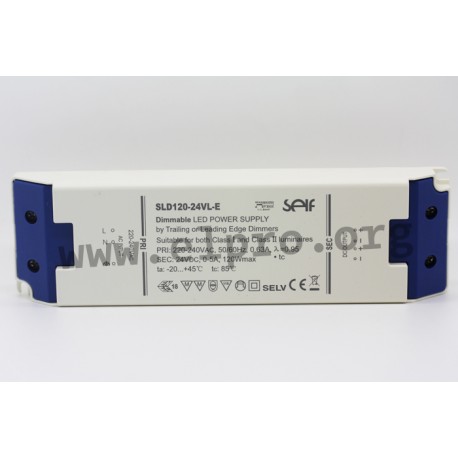

SLD120-24VL-E

Self LED driver series SLD120-VL-E

Flickerfree LED drivers in a plastic housing (IP20) with 120W, a constant voltage and protection class II. These SELV compliant devices have a TRIAC dimmer and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the type SLD120-24VL-E of this Self series.

  • single output
  • output: 55A
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 55A
  • service life: 30.000h (Tc = 85°C)
  • operating temperature: -10 to +45°C
  • dimensions: 223x64x32mm
  • weight: 665g
SLD120-24VL-E

SLD120-24VL-E

111351 SLD120-24VL-E SLD120-24VL-E Self LED driver series SLD120-VL-E. Flickerfree LED drivers in a plastic housing (IP20) with 120W, a constant voltage and protection class II. These SELV compliant devices have a TRIAC dimmer and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN55015, EN61347-1 as well as EN61347-2-13. We offer the type SLD120-24VL-E of this Self series. single output output: 55A input voltage: 220 to 240V AC maximal input inrush current: 55A service life: 30.000h (Tc = 85°C) operating temperature: -10 to +45°C dimensions: 223x64x32mm weight: 665g

Specifications

manufacturer
Manufacturer's name SLD120-24VL-E
Output voltage [V] 24
Efficiency [%] 90
Output current [A] 0...5
Output power [W] 120
Ripple [mVp-p] 500
Data Sheet

Unit price

46,69 €

Volume discounts

Quantity Unit price
100 + 42,89 €
50 + 44,59 €

Stock: 525
Next incoming goods:
CW 09/2025
500 units

Further delivery:
CW 12/2025
