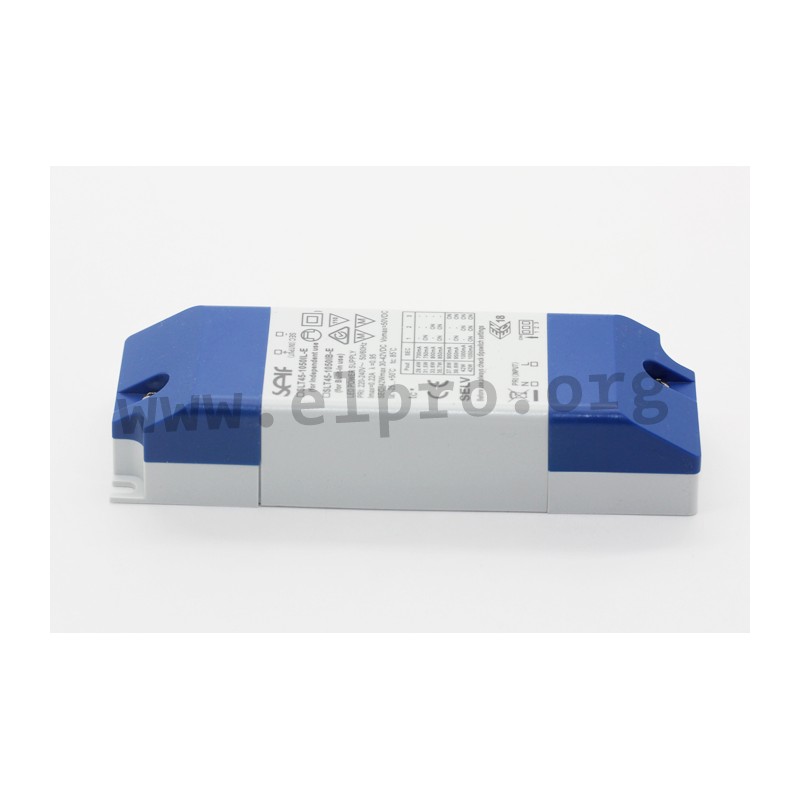

SLT45-1050IL-E

Self LED driver series SLT45-IL-E

Flickerfree LED drivers in a plastic housing (IP20) with 45W, a constant current and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overvoltage, overtemperature as well as short circuit. They are not dimmable and comply with EN55015, EN61000-3-2, EN61347-1 as well as EN61347-2-13. We offer the type SLT45-1050IL-E of this Self series.

  • single output
  • output: 45W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 17A
  • service life: 50.000h (Tc = 45°C)
  • operating temperature: -25 to +50°C
  • dimensions: 139x42x29,8mm
  • weight: 148g

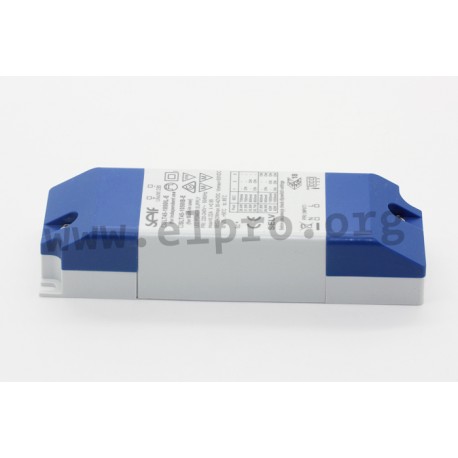

SLT45-1050IL-E, Self LED drivers, 45W, IP20, constant current, SLT45-IL-E series

SLT45-1050IL-E

110884 SLT45-1050IL-E SLT45-1050IL-E Self LED driver series SLT45-IL-E. Flickerfree LED drivers in a plastic housing (IP20) with 45W, a constant current and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overvoltage, overtemperature as well as short circuit. They are not dimmable and comply with EN55015, EN61000-3-2, EN61347-1 as well as EN61347-2-13. We offer the type SLT45-1050IL-E of this Self series. single output output: 45W input voltage: 220 to 240V AC maximal input inrush current: 17A service life: 50.000h (Tc = 45°C) operating temperature: -25 to +50°C dimensions: 139x42x29,8mm weight: 148g

Specifications

manufacturer
Manufacturer's name SLT45-1050IL-E
Output voltage [V] 30...42
Efficiency [%] 90
Output power [W] 45
Output current [mA] 700...1050
Ripple & noise [%] <7
Data Sheet

Unit price

13,69 €

Volume discounts

Quantity Unit price
100 + 11,69 €
50 + 12,19 €

Stock: 112
Next incoming goods:
CW 04/2025
200 units

Further delivery:
CW 16/2025
