KZQ-5B

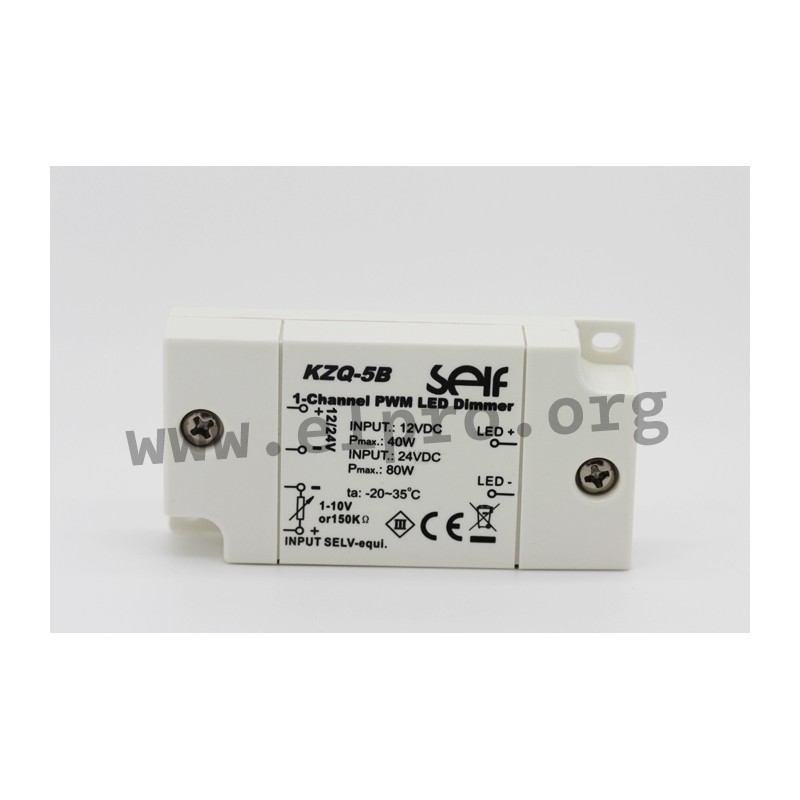

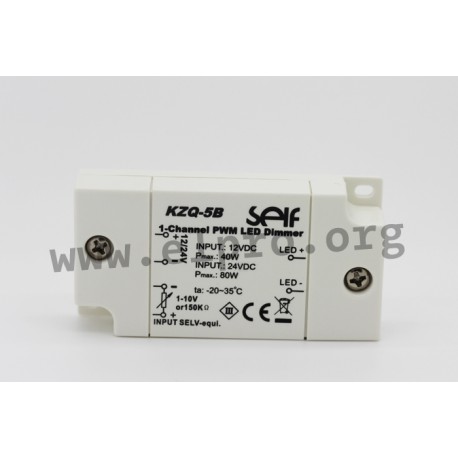

Self PWM dimmer series KZQ-5B

PWM dimming controllers in a plastic housing (IP20) with 80W and a constant voltage. These devices are suitable for 12V or 24V single colour LEDs and are protected against overload, overvoltage as well as short circuit. The dimming is controlled by a 1 to 10V interface or a 150kOhm potentiometer. We offer the type KZQ-5B of this Self series.

  • single output
  • output: 80W
  • input voltage: 12V DC (40W max.) / 24V DC (80W max.)
  • output current: 3,33A
  • dimming range: 0 bis 100%
  • operating temperature: -20 to +35°C
KZQ-5B

KZQ-5B

109145 KZQ-5B KZQ-5B Self PWM dimmer series KZQ-5B. PWM dimming controllers in a plastic housing (IP20) with 80W and a constant voltage. These devices are suitable for 12V or 24V single colour LEDs and are protected against overload, overvoltage as well as short circuit. The dimming is controlled by a 1 to 10V interface or a 150kOhm potentiometer. We offer the type KZQ-5B of this Self series. single output output: 80W input voltage: 12V DC (40W max.) / 24V DC (80W max.) output current: 3,33A dimming range: 0 bis 100% operating temperature: -20 to +35°C

Specifications

manufacturer
Manufacturer's name KZQ-5B
Data Sheet

Unit price

8,09 €

Volume discounts

Quantity Unit price
100 + 6,79 €
50 + 7,19 €

Stock: 109
Further delivery:
CW 12/2025
