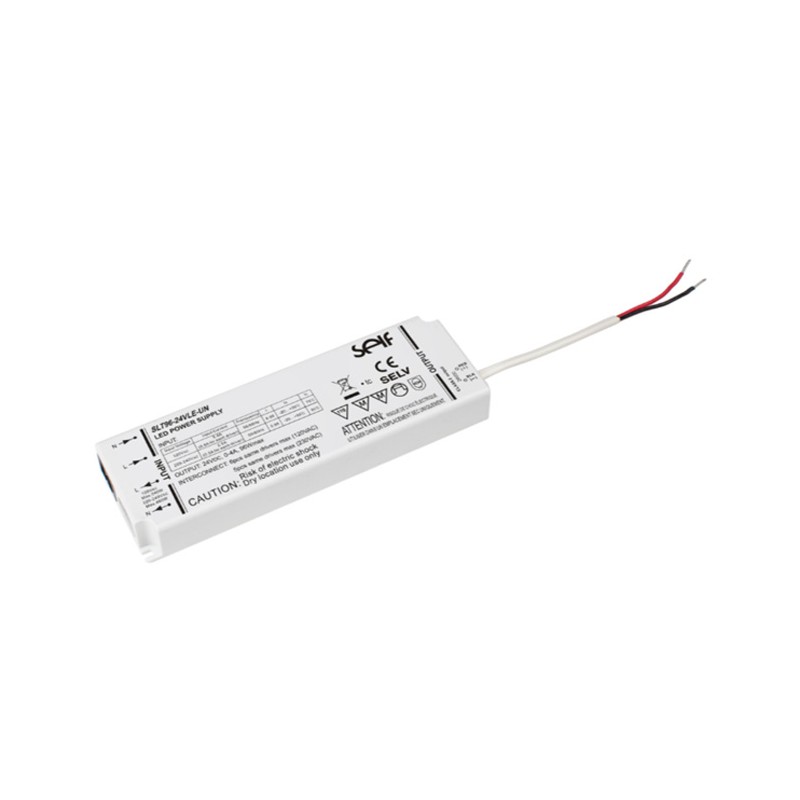

SLT96-48VLE-UN

Self Electronics LED drivers series SLT96-VLE-UN

Non dimmable LED switching power supplies in a plastic case (IP20), equipped with a temperature protection, as well as they are protected against over load and short circuit. These independent devices have a constent voltage and they conform with protection class II. Furthermore, they align with the safety norms EN 61347-1 and EN 61347-2-13, as well as with the EMV norms EN 55015. We offer the following types of this Self Electronics series: SLT96-24VLE-UN and SLT96-48VLE-UN.

  • singel output
  • current: 96W
  • input voltage range: 120 to 240V AC
  • service life (Tc = 90°C): 50.000h
  • operating temperature: -20 to +50°C
  • dimensions: 180x60x22mm

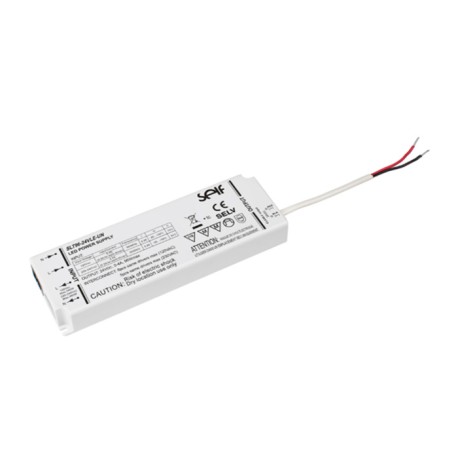

SLT96-48VLE-UN, Self Electronics LED drivers, 96W, IP20, constant voltage, SLT96-VLE-UN series

SLT96-48VLE-UN

248626 SLT96-48VLE-UN SLT96-48VLE-UN Self Electronics LED drivers series SLT96-VLE-UN. Non dimmable LED switching power supplies in a plastic case (IP20), equipped with a temperature protection, as well as they are protected against over load and short circuit. These independent devices have a constent voltage and they conform with protection class II. Furthermore, they align with the safety norms EN 61347-1 and EN 61347-2-13, as well as with the EMV norms EN 55015. We offer the following types of this Self Electronics series: SLT96-24VLE-UN and SLT96-48VLE-UN. singel output current: 96W input voltage range: 120 to 240V AC service life (Tc = 90°C): 50.000h operating temperature: -20 to +50°C dimensions: 180x60x22mm

Specifications

manufacturer
Manufacturer's name SLT96-48VLE-UN
Output voltage [V] 48
Efficiency [%] 91
Output current [A] 0...2
Output power [W] 96
Ripple [mVp-p] 400
Data Sheet

Unit price

34,59 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 500 units or
multiples of 500.
