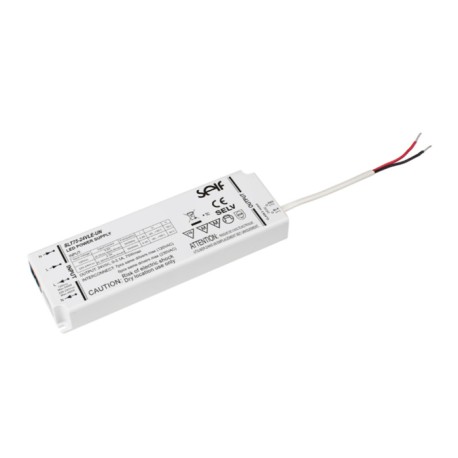

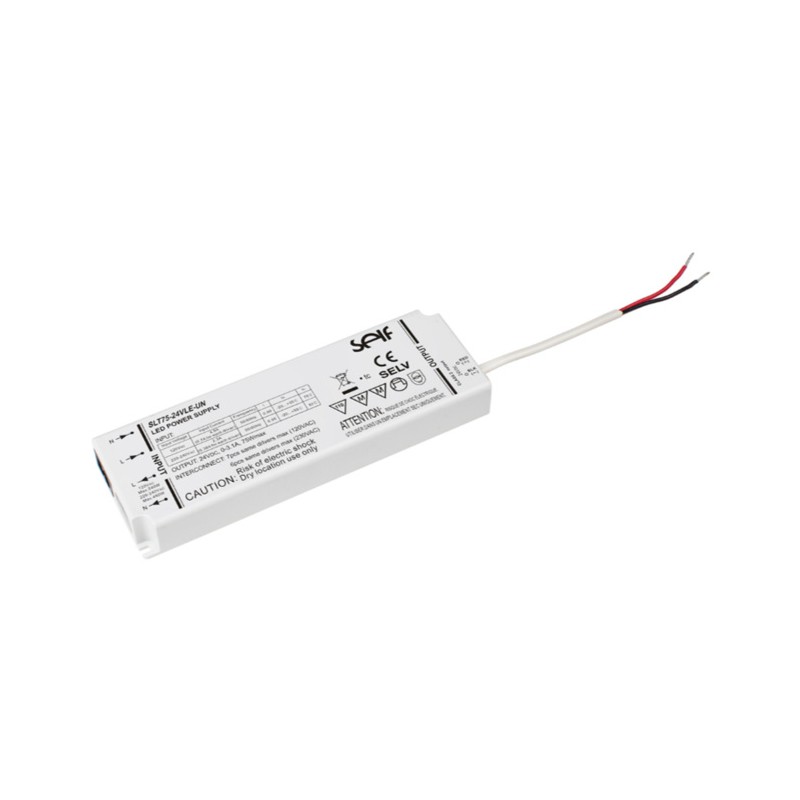

SLT75-24VLE-UN

Self Electronics LED drivers series SLT75-VLE-UN

Non dimmable LED switching power supplies in a plastic case (IP20), equipped with a temperature protection, as well as they are protected against over load and short circuit. These independent devices have a constent voltage and they conform with protection class II. Furthermore, they align with the safety norms EN 61347-1 and EN 61347-2-13, as well as with the EMV norms EN 55015. We offer the following types of this Self Electronics series: SLT75-24VLE-UN and SLT75-48VLE-UN.

  • singel output
  • current: 75W
  • input voltage range: 120 to 240V AC
  • service life (Tc = 90°C): 50.000h
  • operating temperature: -20 to +50°C
  • dimensions: 180x60x22mm
SLT75-24VLE-UN, Self Electronics LED drivers, 75W, IP20, constant voltage, SLT75-VLE-UN series

SLT75-24VLE-UN

248623 SLT75-24VLE-UN SLT75-24VLE-UN Self Electronics LED drivers series SLT75-VLE-UN. Non dimmable LED switching power supplies in a plastic case (IP20), equipped with a temperature protection, as well as they are protected against over load and short circuit. These independent devices have a constent voltage and they conform with protection class II. Furthermore, they align with the safety norms EN 61347-1 and EN 61347-2-13, as well as with the EMV norms EN 55015. We offer the following types of this Self Electronics series: SLT75-24VLE-UN and SLT75-48VLE-UN. singel output current: 75W input voltage range: 120 to 240V AC service life (Tc = 90°C): 50.000h operating temperature: -20 to +50°C dimensions: 180x60x22mm

Specifications

manufacturer
Manufacturer's name SLT75-24VLE-UN
Output voltage [V] 24
Efficiency [%] 92
Output current [A] 0...3,12
Output power [W] 75
Ripple [mVp-p] 200
Data Sheet

Unit price

36,79 €

Volume discounts

Quantity Unit price
100 + 33,59 €
50 + 34,99 €

Stock: 0
Further delivery:
CW 08/2025
