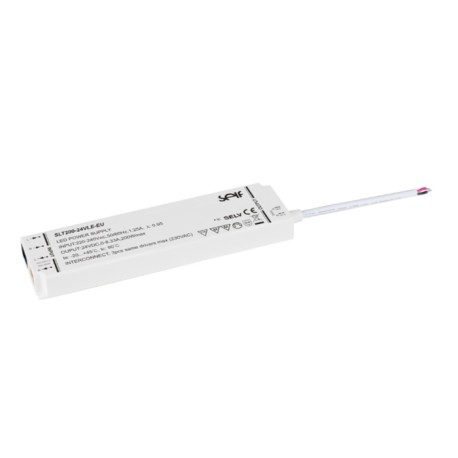

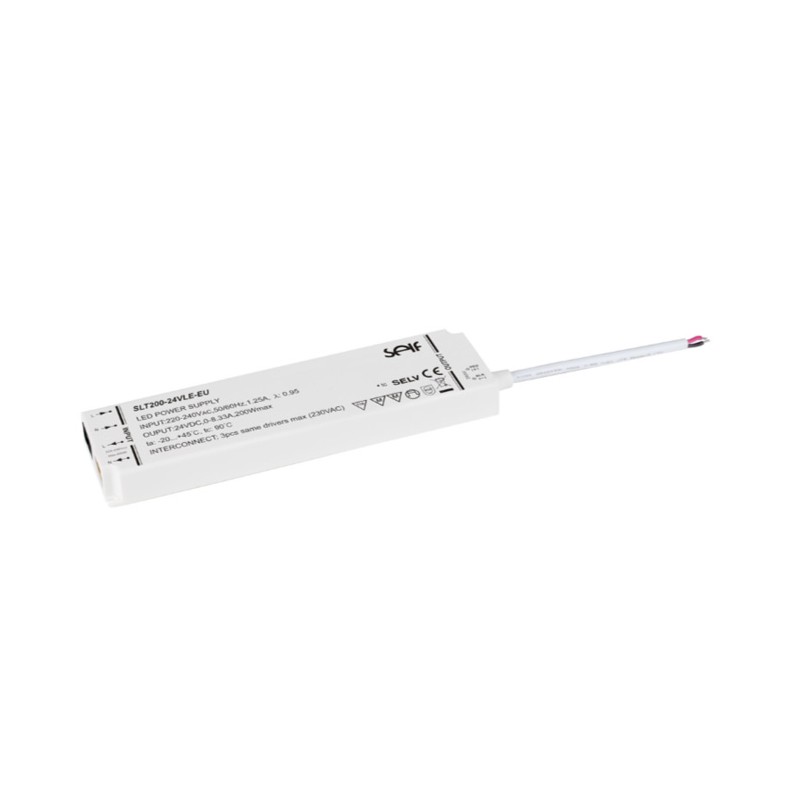

SLT200-24VLE-EU

Self Electronics LED drivers series SLT200-VLE-EU

Non dimmable LED switching power supplies in a plastic case (IP20), equipped with a temperature protection, as well as they are protected against over load and short circuit. These independent devices have a constent voltage and they conform with protection class II. Furthermore, they align with the safety norms EN 61347-1 and EN 61347-2-13, as well as with the EMV norms EN 55015. We offer the following types of this Self Electronics series: SLT200-24VLE-EU and SLT200-48VLE-EU.

  • singel output
  • current: 200W
  • input voltage range: 220 to 240V AC
  • service life (Tc = 90°C): 50.000h
  • operating temperature: -20 to +5°C
  • dimensions: 223x63x22mm
SLT200-24VLE-EU, Self Electronics LED drivers, 200W, IP20, constant voltage, SLT200-VLE-EU series

SLT200-24VLE-EU

248627 SLT200-24VLE-EU SLT200-24VLE-EU Self Electronics LED drivers series SLT200-VLE-EU. Non dimmable LED switching power supplies in a plastic case (IP20), equipped with a temperature protection, as well as they are protected against over load and short circuit. These independent devices have a constent voltage and they conform with protection class II. Furthermore, they align with the safety norms EN 61347-1 and EN 61347-2-13, as well as with the EMV norms EN 55015. We offer the following types of this Self Electronics series: SLT200-24VLE-EU and SLT200-48VLE-EU. singel output current: 200W input voltage range: 220 to 240V AC service life (Tc = 90°C): 50.000h operating temperature: -20 to +5°C dimensions: 223x63x22mm

Specifications

manufacturer
Manufacturer's name SLT200-24VLE-EU
Output voltage [V] 24
Efficiency [%] 94
Output current [A] 0...8,3
Output power [W] 200
Ripple [mVp-p] 480
Data Sheet

Unit price

11.215,59 €

Volume discounts

Quantity Unit price
100 + 46,79 €
50 + 48,79 €

Stock: 0
Further delivery:
CW 08/2025
