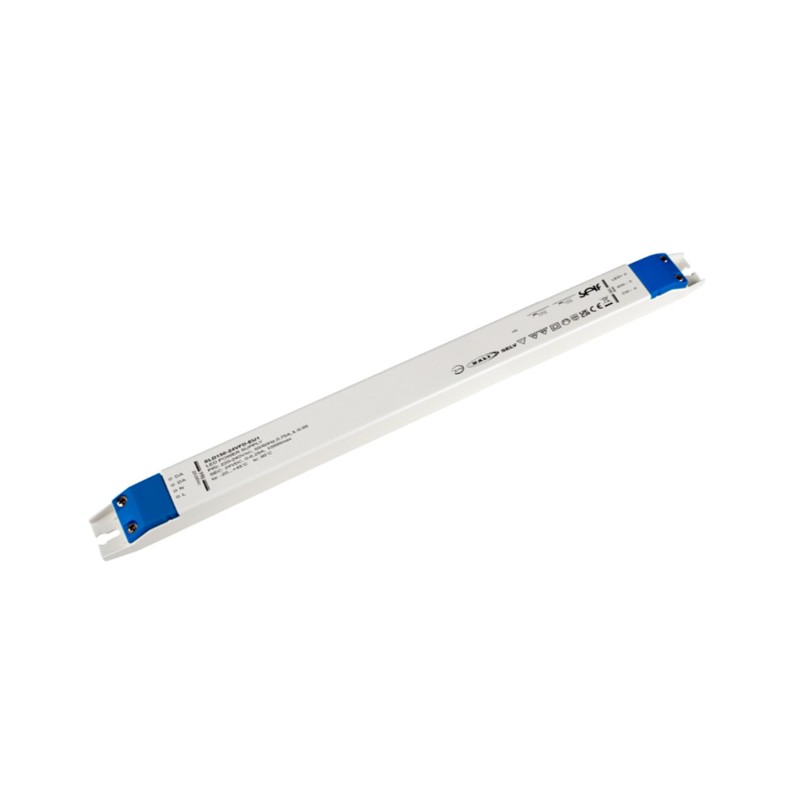

SLD200-24VFD-EU1

Self Electronics LED switching power supplies series SLD200-VFD-EU1

LED switching power supplies in a plastic case (IP20) with 200W, constant voltage, DALI 2.0 interface, and a independent operating device. These devices have a dual output DT8 colour-temperature-control, as well as they are protected against over temperature, overload, and short circuit. They have a low off-load power , dimming up to 0,1%, and are suitable for LED application. Furthermore, these switching power supplies conform with protection class II (SELV-output), such as the safety norms EN61347-1, EN61347-2-13, and the EMV norms EN55015. We offer the following types of this Self Electronics series: SLD200-24VFD-EU1 and SLD200-48VFD-EU1.

  • single output
  • current: 200W
  • input voltage range: 198 to 264V AC (50 to 60Hz), 220 to 280V DC
  • inrush voltage: 0,5W
  • maximal inrush power: 0,75A
  • off-load power: 80A
  • operating temperature: -20 to +40°C
  • dimensions: 402x29,8x22mm

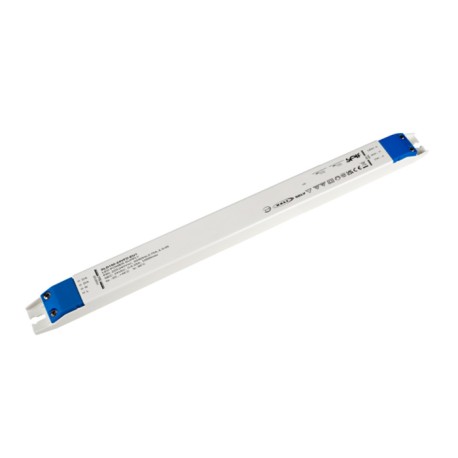

SLD200-24VFD-EU1, Self Electronics LED switching power supplies, 200W, plastic case (IP20), SLD200-VFD-EU1 series

SLD200-24VFD-EU1

247647 SLD200-24VFD-EU1 SLD200-24VFD-EU1 Self Electronics LED switching power supplies series SLD200-VFD-EU1. LED switching power supplies in a plastic case (IP20) with 200W, constant voltage, DALI 2.0 interface, and a independent operating device. These devices have a dual output DT8 colour-temperature-control, as well as they are protected against over temperature, overload, and short circuit. They have a low off-load power , dimming up to 0,1%, and are suitable for LED application. Furthermore, these switching power supplies conform with protection class II (SELV-output), such as the safety norms EN61347-1, EN61347-2-13, and the EMV norms EN55015. We offer the following types of this Self Electronics series: SLD200-24VFD-EU1 and SLD200-48VFD-EU1. single output current: 200W input voltage range: 198 to 264V AC (50 to 60Hz), 220 to 280V DC inrush voltage: 0,5W maximal inrush power: 0,75A off-load power: 80A operating temperature: -20 to +40°C dimensions: 402x29,8x22mm

Specifications

manufacturer
Manufacturer's name SLD200-24VFD-EU1
Output voltage [V] 24
Efficiency [%] 92,5
Output current [A] 8,33
Output power [W] 200
Ripple [mVp-p] 400
Data Sheet

Unit price

81,09 €

Stock: 0
Next incoming goods:
CW 47/2024
30 units

Further delivery:
CW 08/2025
