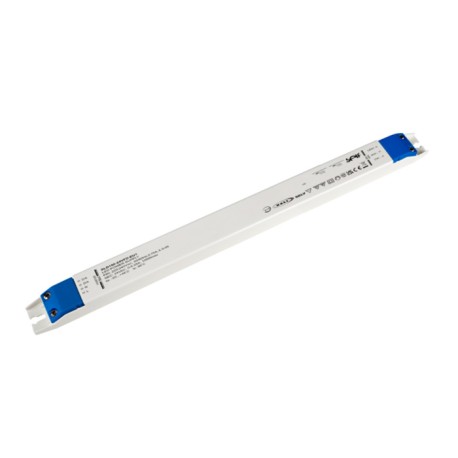

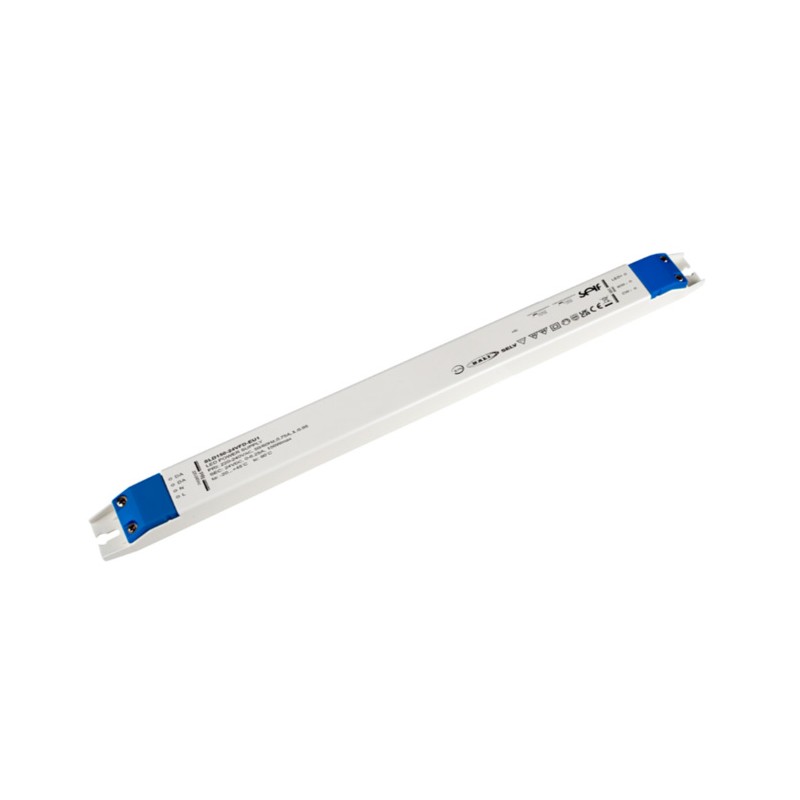

SLD150-48VFD-EU1

Self Electronics LED switching power supplies series SLD150-VFD-EU1

LED switching power supplies in a plastic case (IP20) with 150W, constant voltage, DALI 2.0 interface, and a independent operating device. These devices have a dual output DT8 colour-temperature-control, as well as they are protected against over temperature, overload, and short circuit. They have a low off-load power , dimming up to 0,1%, and are suitable for LED application. Furthermore, these switching power supplies conform with protection class II (SELV-output), such as the safety norms EN61347-1, EN61347-2-13, and the EMV norms EN55015. We offer the following types of this Self Electronics series: SLD150-24VFD-EU1 and SLD150-48VFD-EU1.

  • single output
  • current: 150W
  • input voltage range: 198 to 264V AC (50 to 60Hz)
  • inrush voltage: 220 to 280V DC
  • maximal inrush power: 0,75A
  • off-load power: 80A
  • operating temperature: -20 to +50°C
  • dimensions: 402x30x22mm
  • weight: 400g
SLD150-48VFD-EU1, Self Electronics LED switching power supplies, 150W, plastic case (IP20), SLD150-VFD-EU1 series

SLD150-48VFD-EU1

247646 SLD150-48VFD-EU1 SLD150-48VFD-EU1 Self Electronics LED switching power supplies series SLD150-VFD-EU1. LED switching power supplies in a plastic case (IP20) with 150W, constant voltage, DALI 2.0 interface, and a independent operating device. These devices have a dual output DT8 colour-temperature-control, as well as they are protected against over temperature, overload, and short circuit. They have a low off-load power , dimming up to 0,1%, and are suitable for LED application. Furthermore, these switching power supplies conform with protection class II (SELV-output), such as the safety norms EN61347-1, EN61347-2-13, and the EMV norms EN55015. We offer the following types of this Self Electronics series: SLD150-24VFD-EU1 and SLD150-48VFD-EU1. single output current: 150W input voltage range: 198 to 264V AC (50 to 60Hz) inrush voltage: 220 to 280V DC maximal inrush power: 0,75A off-load power: 80A operating temperature: -20 to +50°C dimensions: 402x30x22mm weight: 400g

Specifications

manufacturer
Manufacturer's name SLD150-48VFD-EU1
Output voltage [V] 48
Efficiency [%] 93,5
Output current [A] 3,125
Output power [W] 150
Ripple [mVp-p] 600
Data Sheet

Unit price

76,59 €

Stock: 0
Next incoming goods:
CW 47/2024
30 units

Further delivery:
CW 08/2025
