C16S-3R0-0025

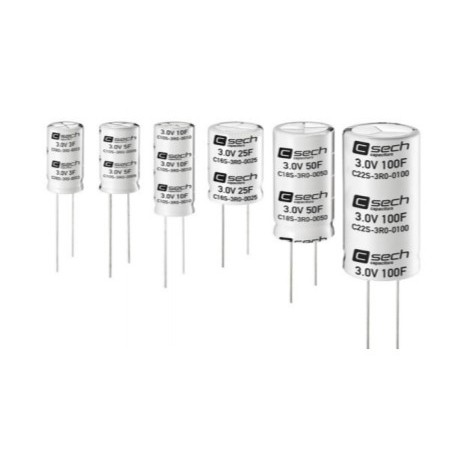

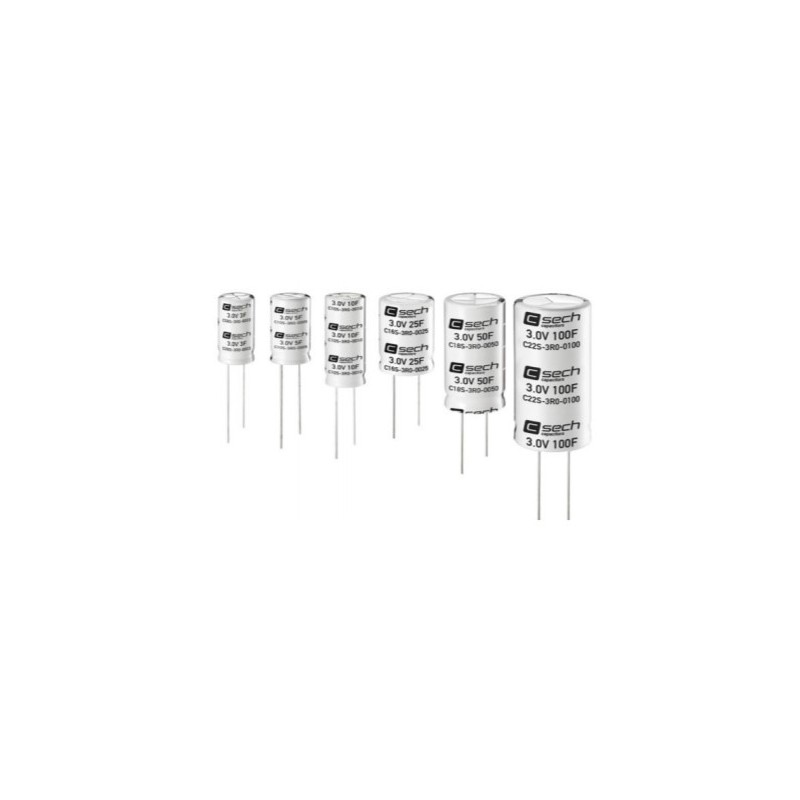

Sech double-layer capacitor series C

  • electrostatic double-layer capacitors (EDLCs)
  • a high capacitance due to a low ESR
  • with a service life of 500 000 resp. 1 000 000 (C35S_) cycles
  • operating temperature: -40 to +65°C
  • capacitance tolerance: -10/+20%
  • capacitance tolerance C35S_: 0/+20%
  • bulk
C16S-3R0-0025, Sech UltraCaps, 3V, C series

C16S-3R0-0025

236687 C16S-3R0-0025 C16S-3R0-0025 Sech double-layer capacitor series C. electrostatic double-layer capacitors (EDLCs) a high capacitance due to a low ESR with a service life of 500 000 resp. 1 000 000 (C35S_) cycles operating temperature: -40 to +65°C capacitance tolerance: -10/+20% capacitance tolerance C35S_: 0/+20% bulk

Specifications

manufacturer
Manufacturer's name C16S-3R0-0025
Nominal voltage [V DC] 3
Equivalent series resistance [mΩ] 15
Capacity [F] 25
Pitch [mm] 7,5
Dimensions [mm] 25x16
Continuous current [A] 3,4
Short-term peak current [A] 23,1
Data Sheet

Unit price

1,57 €

Stock: 107
Further delivery:
CW 20/2025
