C10S-3R0-0005

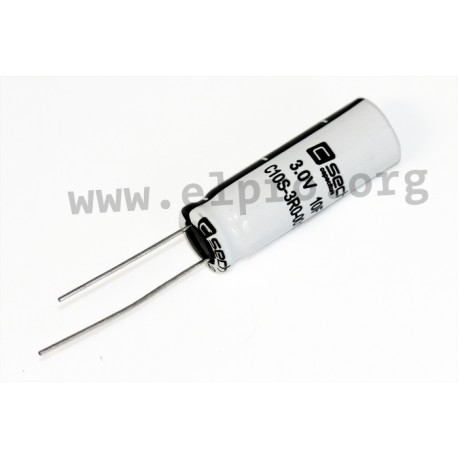

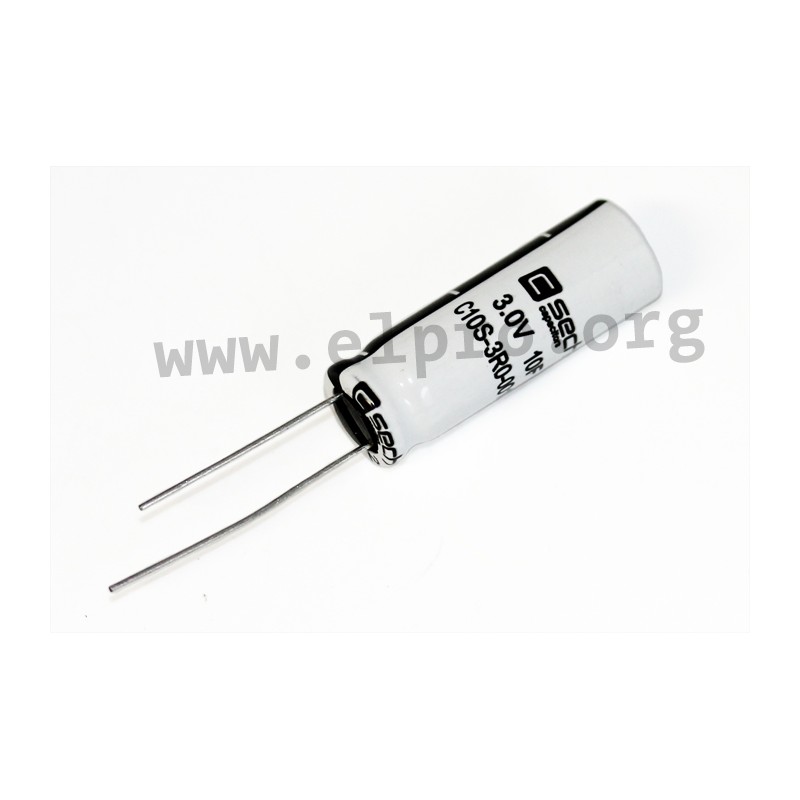

Sech double-layer capacitor series C

  • electrostatic double-layer capacitors (EDLCs)
  • a high capacitance due to a low ESR
  • with a service life of 500 000 resp. 1 000 000 (C35S_) cycles
  • operating temperature: -40 to +65°C
  • capacitance tolerance: -10/+20%
  • capacitance tolerance C35S_: 0/+20%
  • bulk
C10S-3R0-0005, Sech UltraCaps, 3V, C series

C10S-3R0-0005

236685 C10S-3R0-0005 C10S-3R0-0005 Sech double-layer capacitor series C. electrostatic double-layer capacitors (EDLCs) a high capacitance due to a low ESR with a service life of 500 000 resp. 1 000 000 (C35S_) cycles operating temperature: -40 to +65°C capacitance tolerance: -10/+20% capacitance tolerance C35S_: 0/+20% bulk

Specifications

manufacturer
Manufacturer's name C10S-3R0-0005
Nominal voltage [V DC] 3
Equivalent series resistance [mΩ] 40
Capacity [F] 5
Pitch [mm] 5
Dimensions [mm] 20x10
Continuous current [A] 1,6
Short-term peak current [A] 6,1
Data Sheet

Unit price

0,77 €

Stock: 298
Next incoming goods:
CW 08/2025
200 units

Further delivery:
CW 16/2025
