POL 102 rot

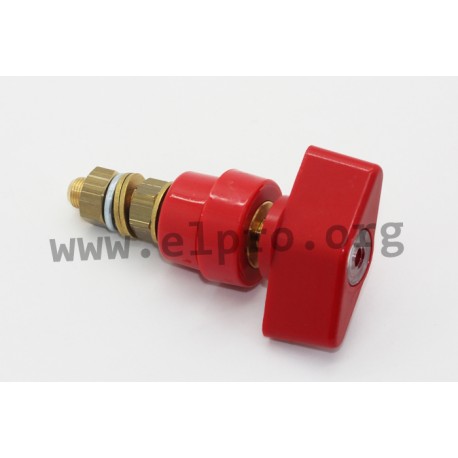

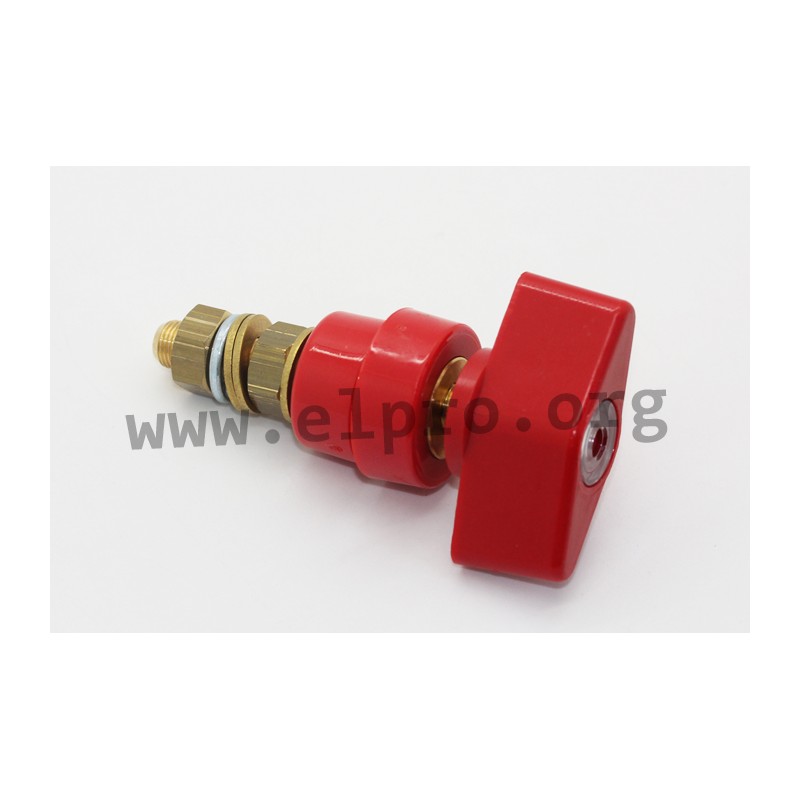

insulated terminal posts POL 102 by Schützinger

• terminal posts with undetachable head
• series: POL 102
• several colours
• contacts: brass, Ni-plated
• insulators: polycarbonat

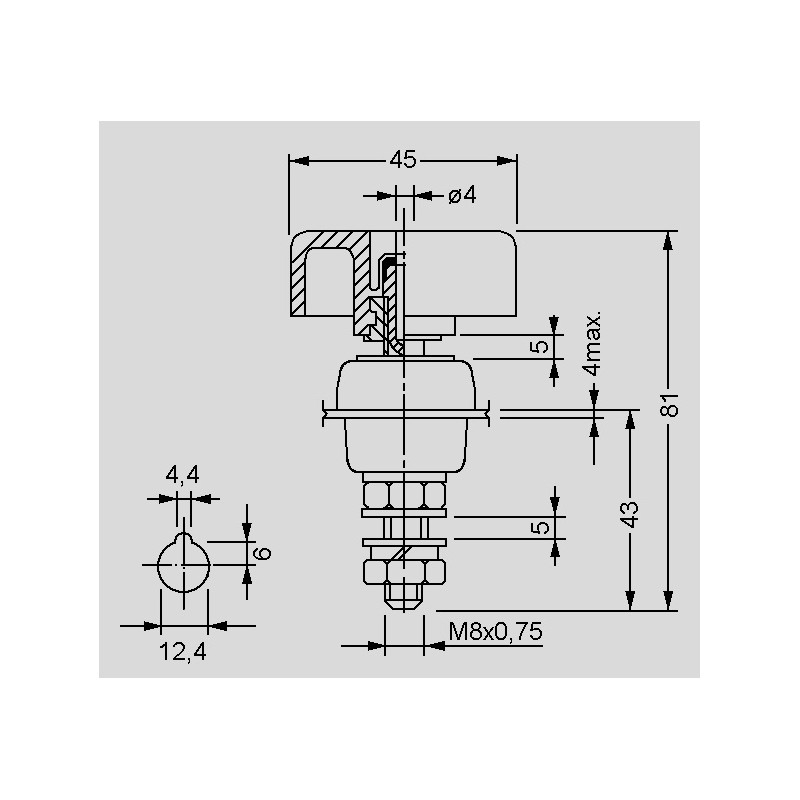

• terminal M8x0.75
• max. torque for the fastening nuts: 6Ncm
• max. transition resistance: 0.4mΩ
• rated current: 100A
• rated voltage: 33V AC / 70V DC
• operating temperature range: -25°C...+115°C
• by Schützinger

POL 102 rot

43554 POL 102 rot POL102/RT POL102/RT insulated terminal posts POL 102 by Schützinger. * terminal posts with undetachable head* series: POL 102* several colours* contacts: brass, Ni-plated* insulators: polycarbonat* terminal M8x0.75* max. torque for the fastening nuts: 6Ncm* max. transition resistance: 0.4mΩ* rated current: 100A* rated voltage: 33V AC / 70V DC* operating temperature range: -25°C...+115°C* by Schützinger

Specifications

manufacturer
Manufacturer's name POL102/RT
Rated current 100A
Colour red
Data Sheet

Unit price

21,49 €

Stock: 23
Further delivery:
CW 07/2025
