MFK 15/2.5 150 cm rot

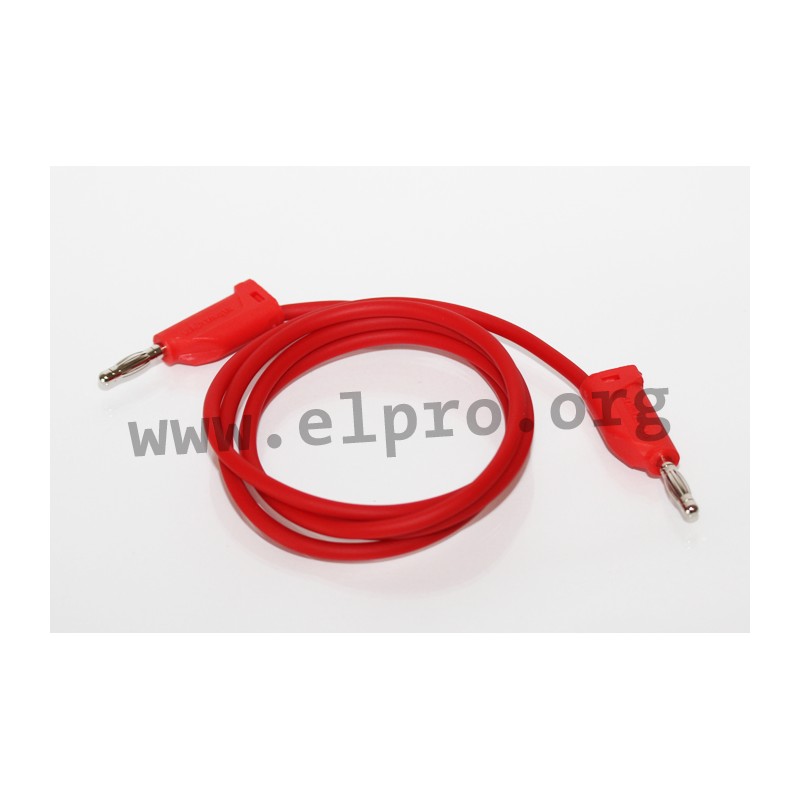

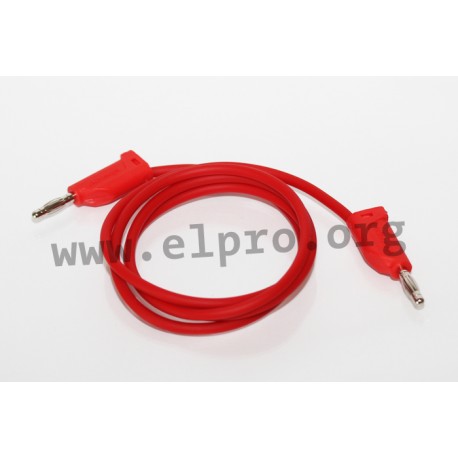

PVC measuring leads MFK15/2.5 by Schützinger

* CAT II
* stackable
* rated current: 32A
* rated voltage: 33V AC, 70V DC
* by Schützinger

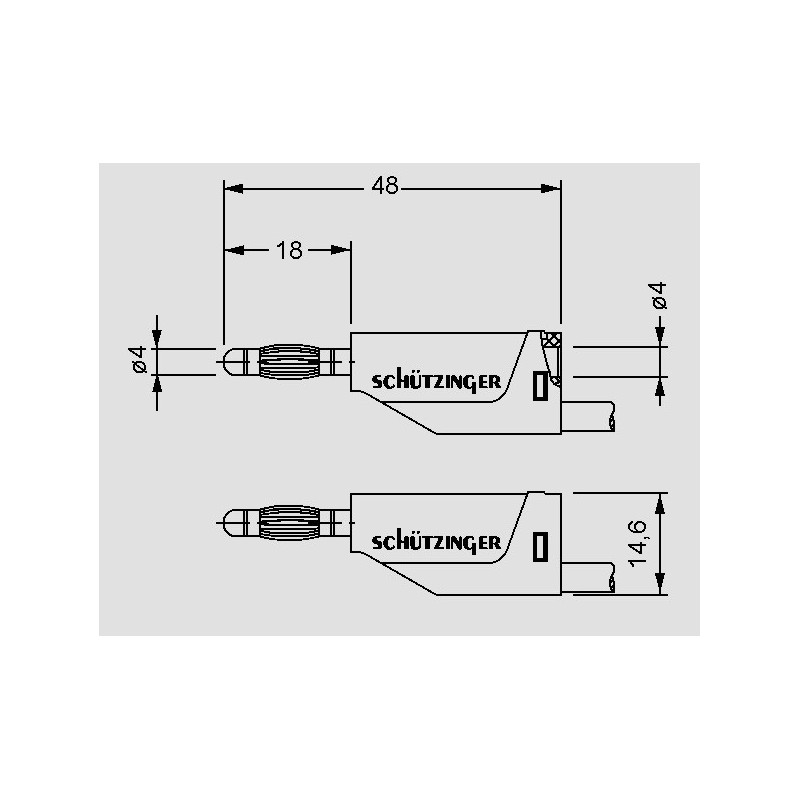

* 2 lamella-basket plugs with axial plug socket Ø 4mm made-up on highly flexible PVC-double-insulated lead 2.5mm²
* sleeves marked with a cross section
* several length: 0.25m, 0.5m, 1m, 1.5m and 2m
* several colours: black, red, blue, yellow and green
* ni-plated contacts
* sleeves: PP (Moplen)
* max. transition restistance (depending on lenght): 5 to 35 mΩ
* operating temperature range: up -10 to +70 °C
Schützinger MFK 15/2.5 series

MFK 15/2.5 150 cm rot

46283 MFK 15/2.5 150 cm rot MFK15/2.5/150/RT MFK15/2.5/150/RT PVC measuring leads MFK15/2.5 by Schützinger. * CAT II* stackable* rated current: 32A* rated voltage: 33V AC, 70V DC* by Schützinger* 2 lamella-basket plugs with axial plug socket Ø 4mm made-up on highly flexible PVC-double-insulated lead 2.5mm²* sleeves marked with a cross section* several length: 0.25m, 0.5m, 1m, 1.5m and 2m* several colours: black, red, blue, yellow and green* ni-plated contacts* sleeves: PP (Moplen)* max. transition restistance (depending on lenght): 5 to 35 mΩ* operating temperature range: up -10 to +70 °C

Specifications

manufacturer
Manufacturer's name MFK15/2.5/150/RT
Colour red
Data Sheet

Unit price

6,99 €

Stock: 0
Further delivery:
CW 50/2024
