MFK 15/1 150 cm schwarz

PVC measuring leads MFK15/1 by Schützinger

• CAT II
• stackable
• rated current: 16A
• rated voltage: 33V AC, 70V DC
• by Schützinger
• 2 lamella-basket plugs with axial plug socket Ø 4mm made-up on highly flexible PVC-double-insulated lead 1mm²
• sleeves marked with a cross section
• several length: 1.5m
• several colours: black
• ni-plated contacts
• sleeves: PE (Hostalen)
• max. transition restistance (depending on lenght): 5 to 40 mΩ
• operating temperature range: up -10 to +80 °C

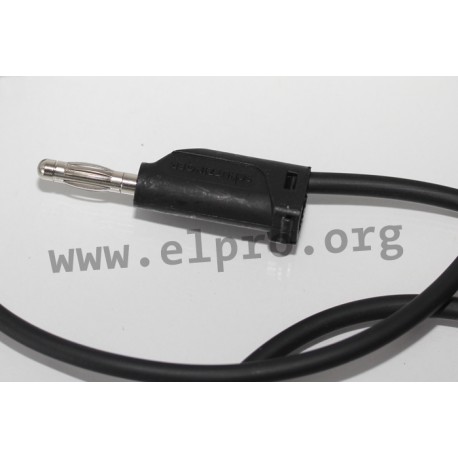

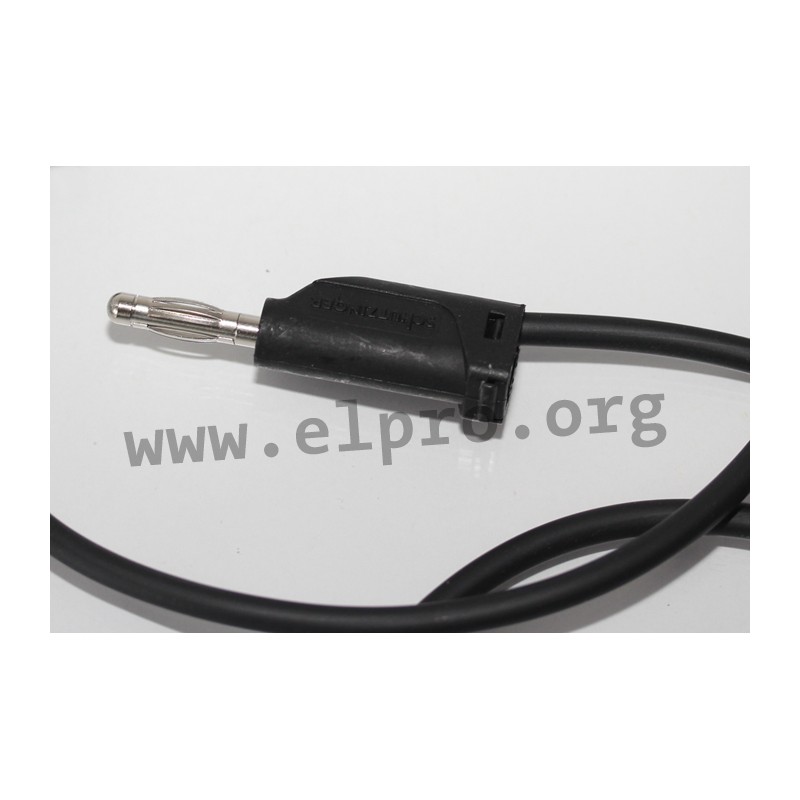

Schützinger MFK15/1/150/SW measuring leads

MFK 15/1 150 cm schwarz

46259 MFK 15/1 150 cm schwarz MFK15/1/150/SW MFK15/1/150/SW PVC measuring leads MFK15/1 by Schützinger. • CAT II• stackable• rated current: 16A• rated voltage: 33V AC, 70V DC• by Schützinger• 2 lamella-basket plugs with axial plug socket Ø 4mm made-up on highly flexible PVC-double-insulated lead 1mm²• sleeves marked with a cross section• several length: 1.5m• several colours: black• ni-plated contacts• sleeves: PE (Hostalen)• max. transition restistance (depending on lenght): 5 to 40 mΩ• operating temperature range: up -10 to +80 °C

Specifications

manufacturer
Manufacturer's name MFK15/1/150/SW
Colour black
Data Sheet

Unit price

6,09 €

Stock: 10
Further delivery:
CW 02/2025
