MFK 15/1 50 cm gelb

PVC measuring leads MFK15/1 by Schützinger

• CAT II
• stackable
• rated current: 16A
• rated voltage: 33V AC, 70V DC
• by Schützinger
• 2 lamella-basket plugs with axial plug socket Ø 4mm made-up on highly flexible PVC-double-insulated lead 1mm²
• sleeves marked with a cross section
• length: 0.5m
• colour: yellow
• ni-plated contacts
• sleeves: PE (Hostalen)
• max. transition restistance (depending on lenght): 5 to 40 mΩ
• operating temperature range: up -10 to +80 °C

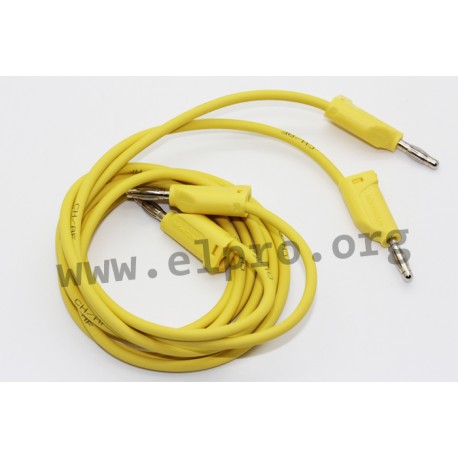

Schützinger MFK15/1/50/GE measuring leads

MFK 15/1 50 cm gelb

46246 MFK 15/1 50 cm gelb MFK15/1/50/GE MFK15/1/50/GE PVC measuring leads MFK15/1 by Schützinger. • CAT II• stackable• rated current: 16A• rated voltage: 33V AC, 70V DC• by Schützinger• 2 lamella-basket plugs with axial plug socket Ø 4mm made-up on highly flexible PVC-double-insulated lead 1mm²• sleeves marked with a cross section• length: 0.5m• colour: yellow• ni-plated contacts• sleeves: PE (Hostalen)• max. transition restistance (depending on lenght): 5 to 40 mΩ• operating temperature range: up -10 to +80 °C

Specifications

manufacturer
Manufacturer's name MFK15/1/50/GE
Colour yellow
Data Sheet

Unit price

5,29 €

Stock: 22
Further delivery:
CW 02/2025
