ESD 6554 blau

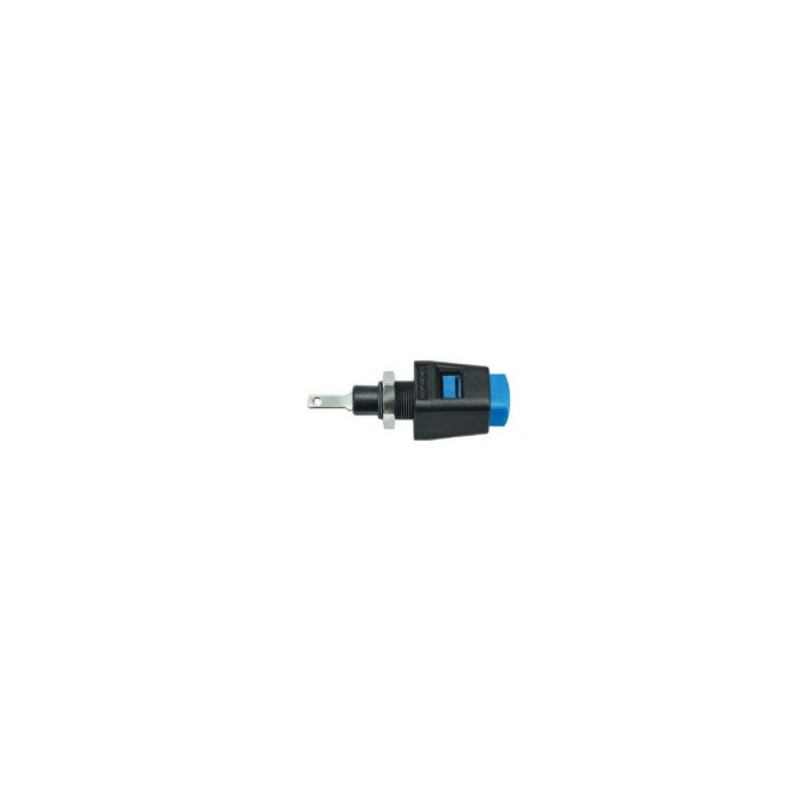

Schützinger quick-release terminal series ESD6554

Quick-release terminals by Schützinger with a flat connector (2,8x0,5mm) for a fully insulated mounting in metal panels. These quick-release terminals in black, red, blue, yellow or green are designed for panels with a thickness of 0,8 to 4mm and are particularly suitable for a quick connection and testing of serial devices. Wires and cords can be clamped between the sprung jaws by pressing the button of the terminal. We offer these terminals in the following designs: ESD 6554 schwarz, ESD 6554 rot, ESD 6554 blau, ESD 6554 gelb, ESD 6554 grün.

  • contacts: Ni-plated
  • insulating parts: PA 6.6 (polyamid)
  • maximal transition resistance: 5mOhm
  • maximal torque for the fastening nuts: 30Ncm
  • rated current: 5A
  • rated voltage: 33V AC / 70V DC
  • operating temperature range: -25°C to +90°C
ESD 6554 blau

ESD 6554 blau

112334 ESD 6554 blau ESD6554/BL ESD6554/BL Schützinger quick-release terminal series ESD6554. Quick-release terminals by Schützinger with a flat connector (2,8x0,5mm) for a fully insulated mounting in metal panels. These quick-release terminals in black, red, blue, yellow or green are designed for panels with a thickness of 0,8 to 4mm and are particularly suitable for a quick connection and testing of serial devices. Wires and cords can be clamped between the sprung jaws by pressing the button of the terminal. We offer these terminals in the following designs: ESD 6554 schwarz, ESD 6554 rot, ESD 6554 blau, ESD 6554 gelb, ESD 6554 grün. contacts: Ni-platedinsulating parts: PA 6.6 (polyamid)maximal transition resistance: 5mOhmmaximal torque for the fastening nuts: 30Ncmrated current: 5Arated voltage: 33V AC / 70V DCoperating temperature range: -25°C to +90°C

Specifications

manufacturer
Manufacturer's name ESD6554/BL
Colour blue
Data Sheet

Unit price

3,19 €

Stock: 6
Further delivery:
CW 02/2025
