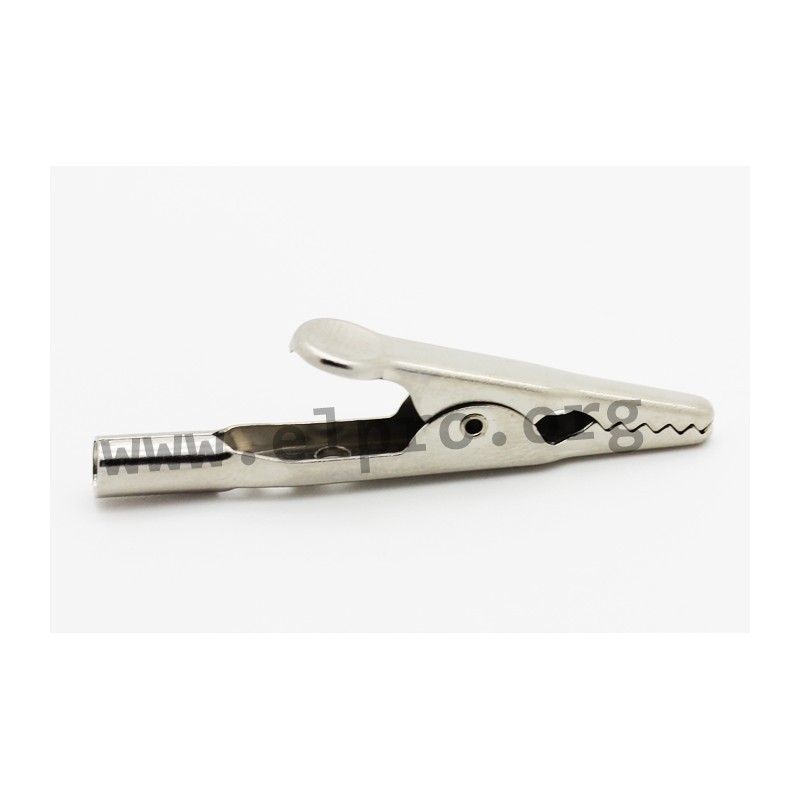

AK 305 Ni

Schützinger CAT I crocodile clips

Crocodile clips with a socket terminal (Ø4mm). These clips grip up to Ø8mm and are suited for a rated current of 10A (AK 4732 Cu) or 16A (AK 305 Ni) with a rated voltage of 33V AC or 70V DC. They have no insulation.

  • contacts AK 305 Ni: steel, nickel plated
  • contacts AK 4732 Cu: solid copper
  • terminal AK 305 Ni: inline socket
  • terminal AK 4732 Cu: inline socket and screw terminal
  • maximal transition resistance AK 305 Ni: 100mOhm
  • maximal transition resistance AK 4732 Cu: 5mOhm
  • operating temperature range: -40°C to +110°C

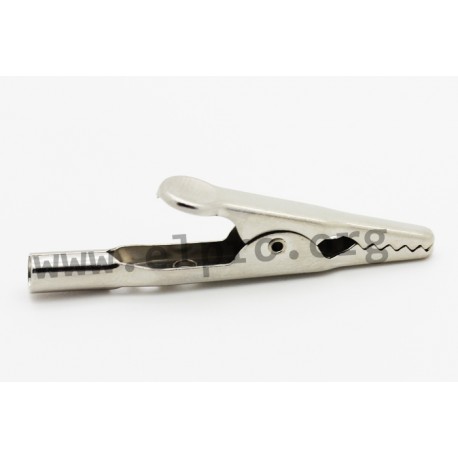

AK 305 Ni

AK 305 Ni

112331 AK 305 Ni AK305NI AK305NI Schützinger CAT I crocodile clips. Crocodile clips with a socket terminal (Ø4mm). These clips grip up to Ø8mm and are suited for a rated current of 10A (AK 4732 Cu) or 16A (AK 305 Ni) with a rated voltage of 33V AC or 70V DC. They have no insulation. contacts AK 305 Ni: steel, nickel platedcontacts AK 4732 Cu: solid copperterminal AK 305 Ni: inline socketterminal AK 4732 Cu: inline socket and screw terminalmaximal transition resistance AK 305 Ni: 100mOhmmaximal transition resistance AK 4732 Cu: 5mOhmoperating temperature range: -40°C to +110°C

Specifications

manufacturer
Manufacturer's name AK305NI
Data Sheet

Unit price

1,20 €

Stock: 91
Further delivery:
CW 02/2025

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
