3403.0283.11

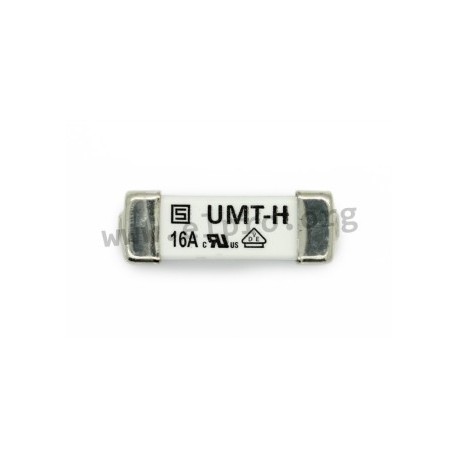

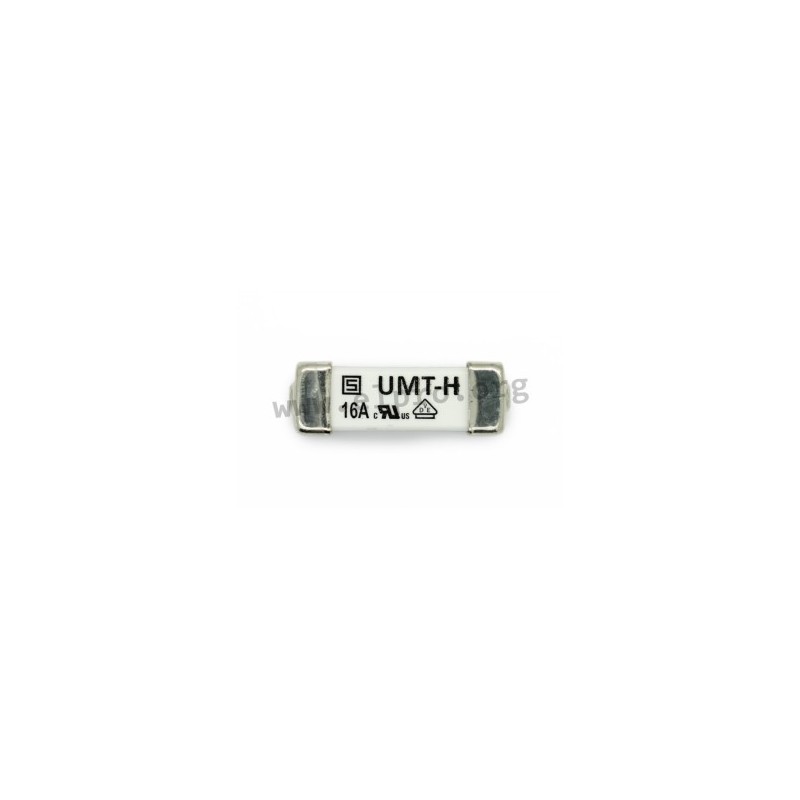

Schurter SMD fuse series UMT-H

SMD fuses in a 16x5,3mm ceramic housing with Ni/Sn coated copper terminals. These fuses are suitable for puls-shaped continuous currents as well as for direct PCB mounting. They have a time lag characteristic and a breaking capacity of up to 1500A. We offer the following types of this Schurter series: 3403.0266.11, 3403.0271.11, 3403.0274.11, 3403.0277.11, 3403.0280.11, 3403.0283.11, 3403.0284.11, 3403.0286.11, 3403.0289.11, 3403.0290.11 and 3403.0291.11.

  • rated voltage: 277V AC, 250V DC
  • rated current: 0,16 to 50A
  • characteristic: time lag
  • breaking capacity: 100 to 1500A
  • operating temperature: -55 to +125°C
  • bulk
3403.0283.11, Schurter SMD fuses, time lag, 16x5,3mm housing, UMT-H series

3403.0283.11

235055 3403.0283.11 3403.0283.11 Schurter SMD fuse series UMT-H. SMD fuses in a 16x5,3mm ceramic housing with Ni/Sn coated copper terminals. These fuses are suitable for puls-shaped continuous currents as well as for direct PCB mounting. They have a time lag characteristic and a breaking capacity of up to 1500A. We offer the following types of this Schurter series: 3403.0266.11, 3403.0271.11, 3403.0274.11, 3403.0277.11, 3403.0280.11, 3403.0283.11, 3403.0284.11, 3403.0286.11, 3403.0289.11, 3403.0290.11 and 3403.0291.11. rated voltage: 277V AC, 250V DC rated current: 0,16 to 50A characteristic: time lag breaking capacity: 100 to 1500A operating temperature: -55 to +125°C bulk

Specifications

manufacturer
Manufacturer's name 3403.0283.11
Nominal voltage [V DC] 125
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 75
Melting integral [A²s] 125
Rated current [A] 8
Data Sheet

Unit price

1,05 €

Stock: 340
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
