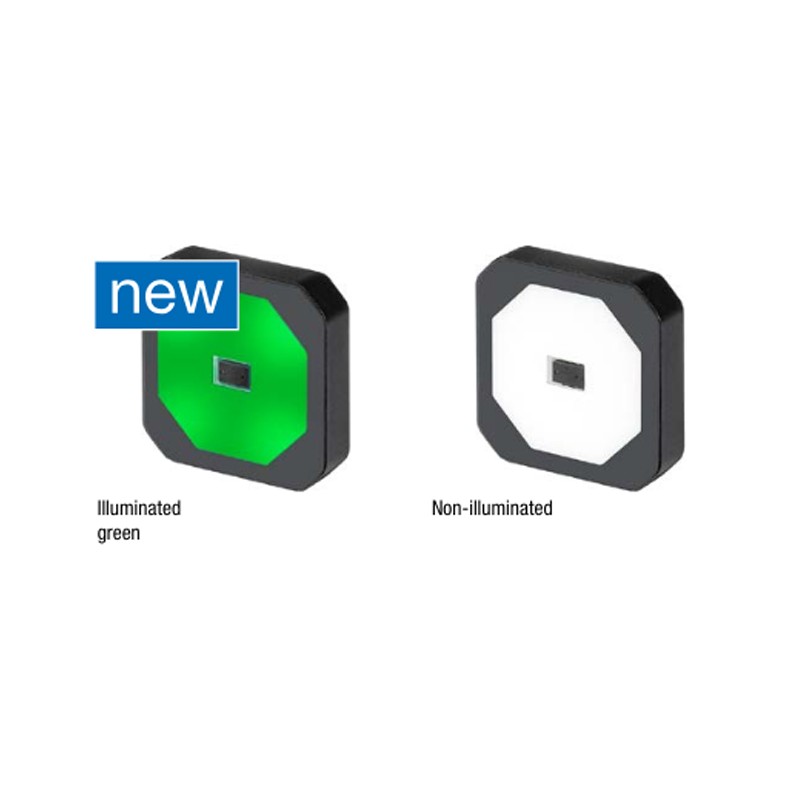

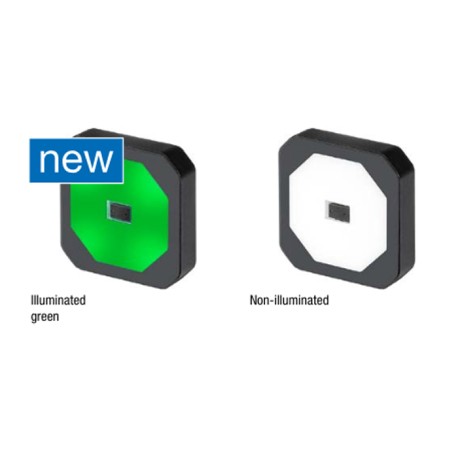

Schurter touchless push button switches series THS

These touchless push buttons (1x NC) have an optical confirmation as well as a RGB Area illumination and a TOF sensortechnology. They have a glue attachment with a stranded wire connection and a standard sensitivity for glass thickness of up to 2mm, furthermore they are protectet against voltage reversal and short circuit. We offer the 3-140-093 type of this Schuter series.

  • contact: 1x normally closed contact
  • maximal switching voltage: 42V AC, 60V DC
  • maximal switching current:0,1A
  • switching resistor, open: > 10 MΩ
  • switching resistor, closed: < 16Ω
  • lifespan / cycles: > 100 million confirmations
  • operating temperature: -40 to +85°C
  • dimensions: 30x30x7,7mm
3-140-093, Schurter push button switches, touchless, 1x normally closed contact, THS series

3-140-093

246725 3-140-093 3-140-093 Schurter touchless push button switches series THS. These touchless push buttons (1x NC) have an optical confirmation as well as a RGB Area illumination and a TOF sensortechnology. They have a glue attachment with a stranded wire connection and a standard sensitivity for glass thickness of up to 2mm, furthermore they are protectet against voltage reversal and short circuit. We offer the 3-140-093 type of this Schuter series. contact: 1x normally closed contact maximal switching voltage: 42V AC, 60V DC maximal switching current:0,1A switching resistor, open: &gt; 10 MΩ switching resistor, closed: &lt; 16Ω lifespan / cycles: &gt; 100 million confirmations operating temperature: -40 to +85°C dimensions: 30x30x7,7mm

Specifications

manufacturer
Manufacturer's name 3-140-093
Data Sheet

Unit price

54,19 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 20 units or
multiples of 20.
