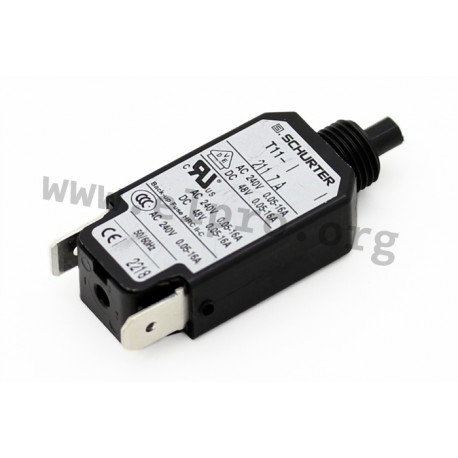

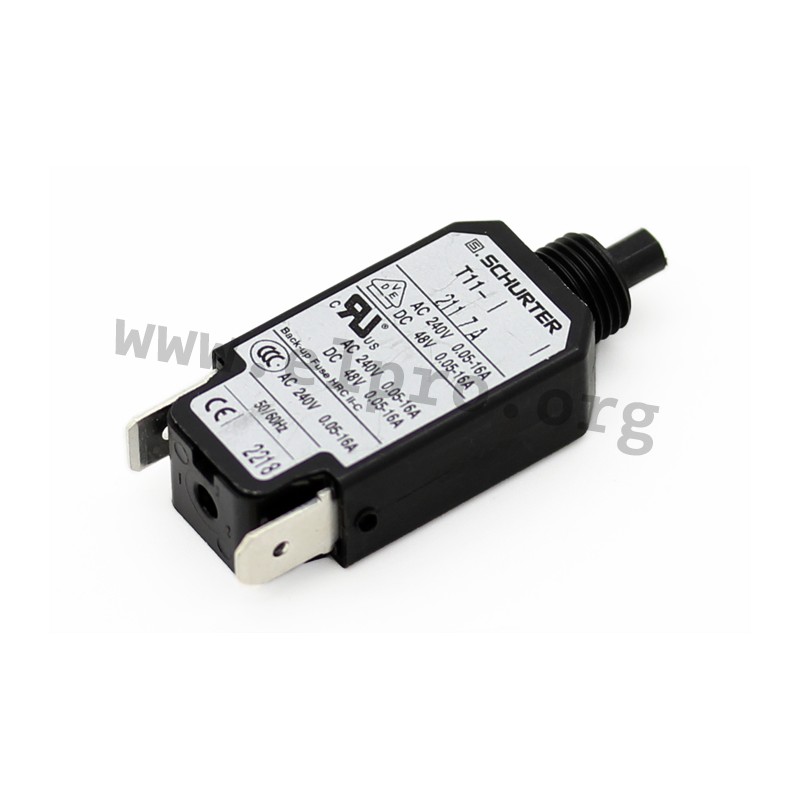

T11-211-6A
circuit breakers for equipment
• single pole thermal circuit breaker
• ideal as replacement for fuses, especially for higher rated current
• advantage of being immune to high inrush currents and line transients
• easy screw mounting 3/8–27UNS–2A, 6mm lenght
• quick connect terminals 6,3x0.8mm
• rated voltage:
120V/240V AC
24V/32V/48V DC
• conditional short circuit current (PC1, 240V AC): 2000A
• short circuit capacity
240V AC, IN<6,5A: 8xIn
240V AC, IN³6,5A: 96A
• dielectric strenght: 4000V AC
• insulation resistance (500V DC): >100MΩ
• type of tripping: positively trip-free
• weight: 10g
