Manufacturers

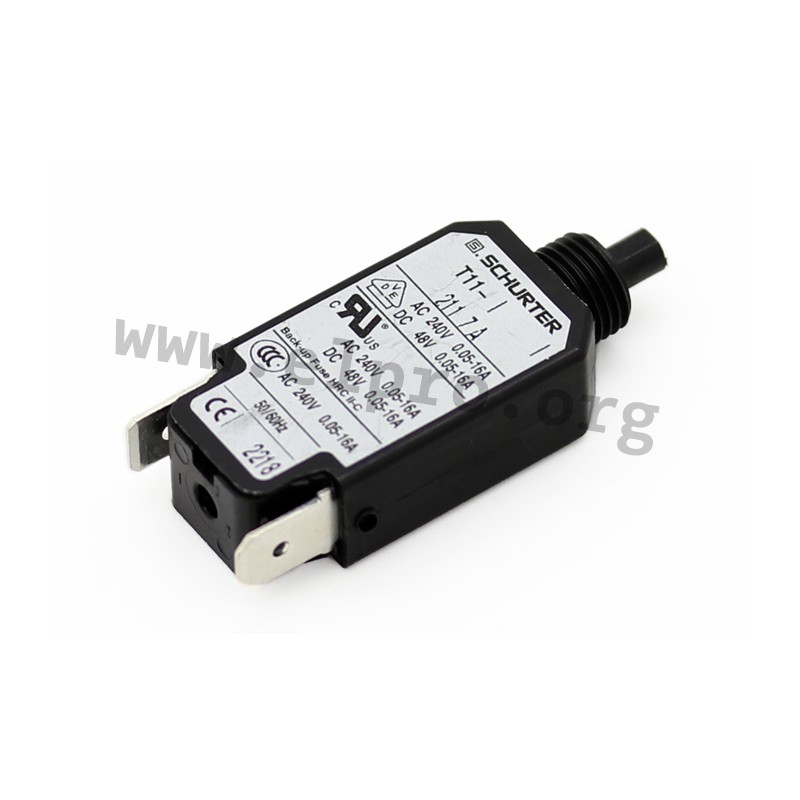

T11-211-2,5A

circuit breakers for equipment

* single pole thermal circuit breaker
* ideal as replacement for fuses, especially for higher rated current
* advantage of being immune to high inrush currents and line transients
* easy screw mounting 3/8–27UNS–2A, 6mm lenght
* quick connect terminals 6,3x0.8mm
* rated voltage:
120V/240V AC
24V/32V/48V DC
* conditional short circuit current (PC1, 240V AC): 2000A
* short circuit capacity
240V AC, IN<6,5A: 8xIn
240V AC, IN³6,5A: 96A
* dielectric strenght: 4000V AC
* insulation resistance (500V DC): >100MΩ
* type of tripping: positively trip-free
* weight: 10g

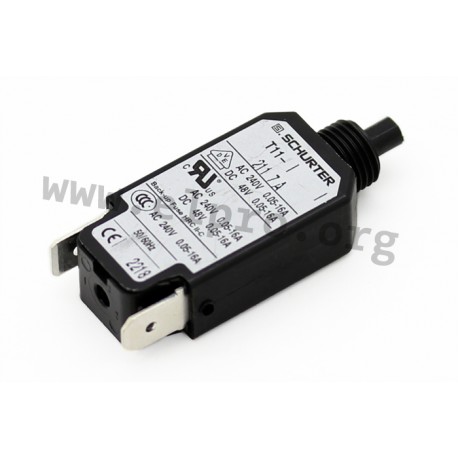

4400.0009, Schurter circuit breakers, thread-neck type, T11-211 series

T11-211-2,5A

27470 T11-211-2,5A 4400.0009 4400.0009 circuit breakers for equipment. * single pole thermal circuit breaker* ideal as replacement for fuses, especially for higher rated current* advantage of being immune to high inrush currents and line transients* easy screw mounting 3/8–27UNS–2A, 6mm lenght* quick connect terminals 6,3x0.8mm* rated voltage: 120V/240V AC24V/32V/48V DC* conditional short circuit current (PC1, 240V AC): 2000A* short circuit capacity240V AC, IN&lt;6,5A: 8xIn240V AC, IN³6,5A: 96A* dielectric strenght: 4000V AC* insulation resistance (500V DC): &gt;100MΩ* type of tripping: positively trip-free* weight: 10g

Specifications

manufacturer
Manufacturer's name 4400.0009
Data Sheet

Unit price

5,49 €

Stock: 40
Further delivery:
CW 17/2025
