0001.1002

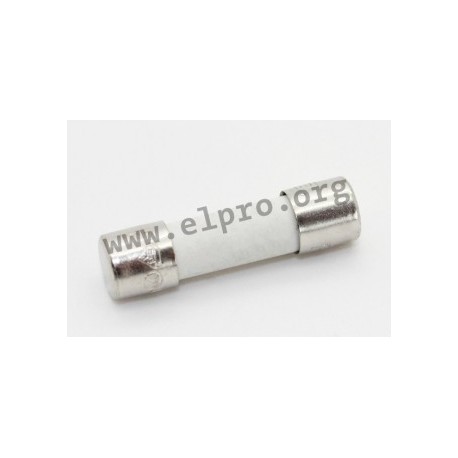

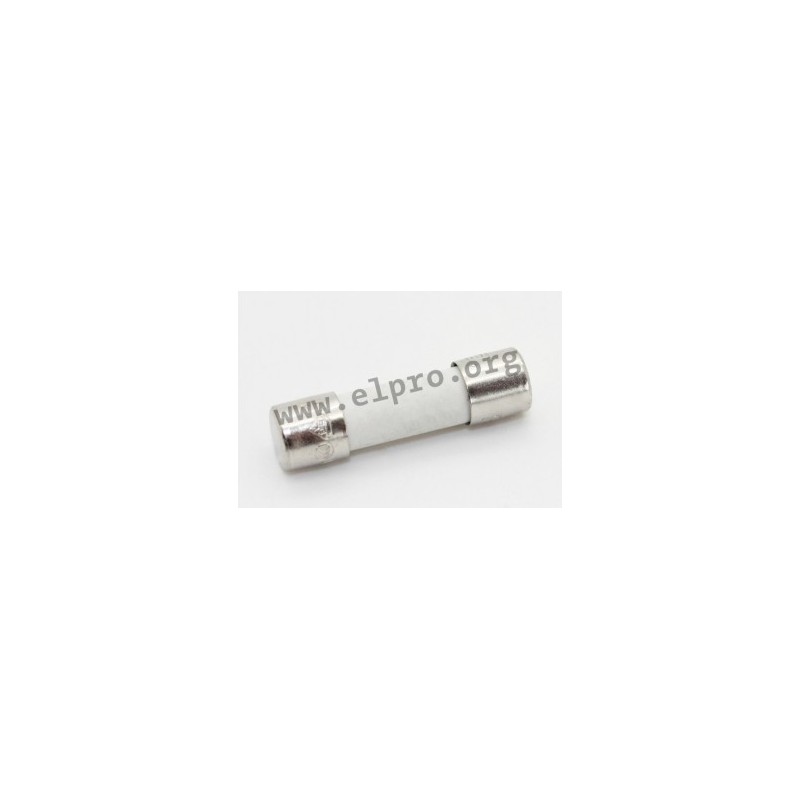

Schurter fuse link series SP 5x20

Fuse links in a 5x20mm ceramic housing with nickel-plated end caps made of copper alloy. These fuses have a fast acting characteristic (F) and a breaking capacity of 500 to 1500A. They comply with IEC60127-2 and are suitable for use as primary protection in appliances. We offer various types of this Schurter series.

  • rated voltage: 250V AC
  • rated current: 0,5 to 16A
  • breaking capacity: 500 to 1500A
  • operating temperature: -55 to +125°C
  • weight: 1,18g
0001.1002, Schurter fuse links, 5x20mm, fast acting, 250V, SP 5x20 series

0001.1002

251000 0001.1002 0001.1002 Schurter fuse link series SP 5x20. Fuse links in a 5x20mm ceramic housing with nickel-plated end caps made of copper alloy. These fuses have a fast acting characteristic (F) and a breaking capacity of 500 to 1500A. They comply with IEC60127-2 and are suitable for use as primary protection in appliances. We offer various types of this Schurter series. rated voltage: 250V AC rated current: 0,5 to 16A breaking capacity: 500 to 1500A operating temperature: -55 to +125°C weight: 1,18g

Specifications

manufacturer
Manufacturer's name 0001.1002
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 1500
Melting integral [A²s] 0,207
Rated current [A] 0,63
Data Sheet

Unit price

0,319 €

Stock: 0
Further delivery:
CW 32/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
