0001.1013

Schurter fuse link series SP 5x20

Fuse links in a 5x20mm ceramic housing with nickel-plated end caps made of copper alloy. These fuses have a fast acting characteristic (F) and a breaking capacity of 500 to 1500A. They comply with IEC60127-2 and are suitable for use as primary protection in appliances. We offer the following types of this Schurter series: 0001.1001, 0001.1003, 0001.1004, 0001.1005, 0001.1006, 0001.1007, 0001.1008, 0001.1009, 0001.1010, 0001.1011, 0001.1012, 0001.1013, 0001.1014, 0001.1015 and 0001.1016.

  • rated voltage: 250V AC
  • rated current: 0,5 to 16A
  • breaking capacity: 500 to 1500A
  • operating temperature: -55 to +125°C
  • weight: 1,18g

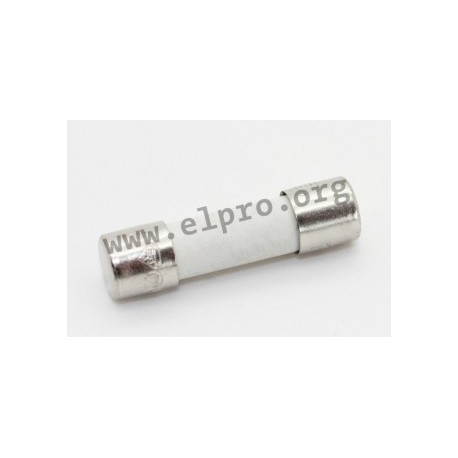

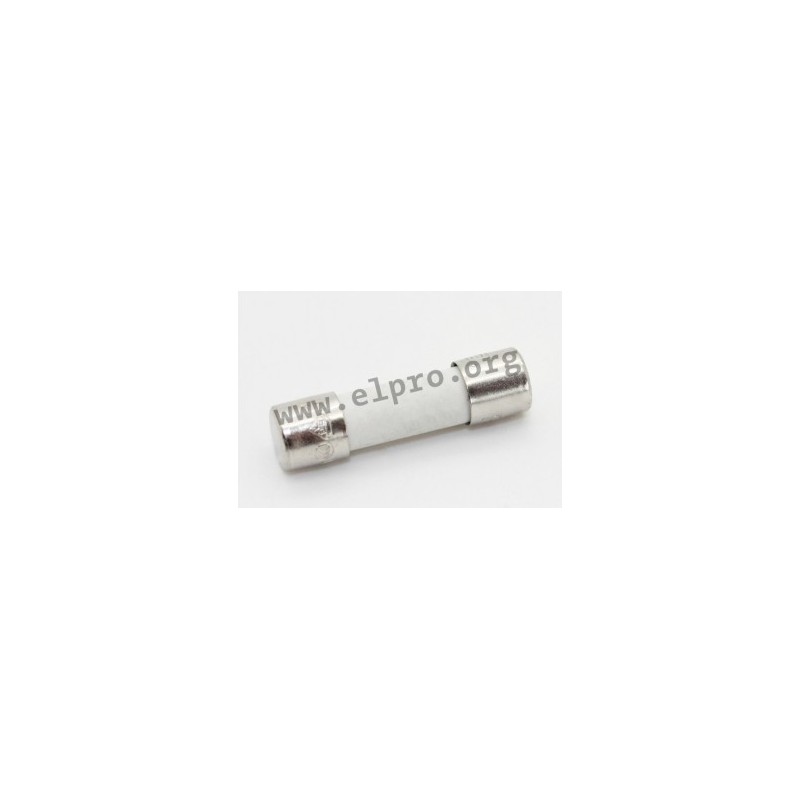

0001.1013, Schurter fuse links, 5x20mm, fast acting, 250V, SP 5x20 series

0001.1013

235077 0001.1013 0001.1013 Schurter fuse link series SP 5x20. Fuse links in a 5x20mm ceramic housing with nickel-plated end caps made of copper alloy. These fuses have a fast acting characteristic (F) and a breaking capacity of 500 to 1500A. They comply with IEC60127-2 and are suitable for use as primary protection in appliances. We offer the following types of this Schurter series: 0001.1001, 0001.1003, 0001.1004, 0001.1005, 0001.1006, 0001.1007, 0001.1008, 0001.1009, 0001.1010, 0001.1011, 0001.1012, 0001.1013, 0001.1014, 0001.1015 and 0001.1016. rated voltage: 250V AC rated current: 0,5 to 16A breaking capacity: 500 to 1500A operating temperature: -55 to +125°C weight: 1,18g

Specifications

manufacturer
Manufacturer's name 0001.1013
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 200
Melting integral [A²s] 81,9
Rated current [A] 8
Data Sheet

Unit price

0,212 €

Stock: 440
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
