8020.5065

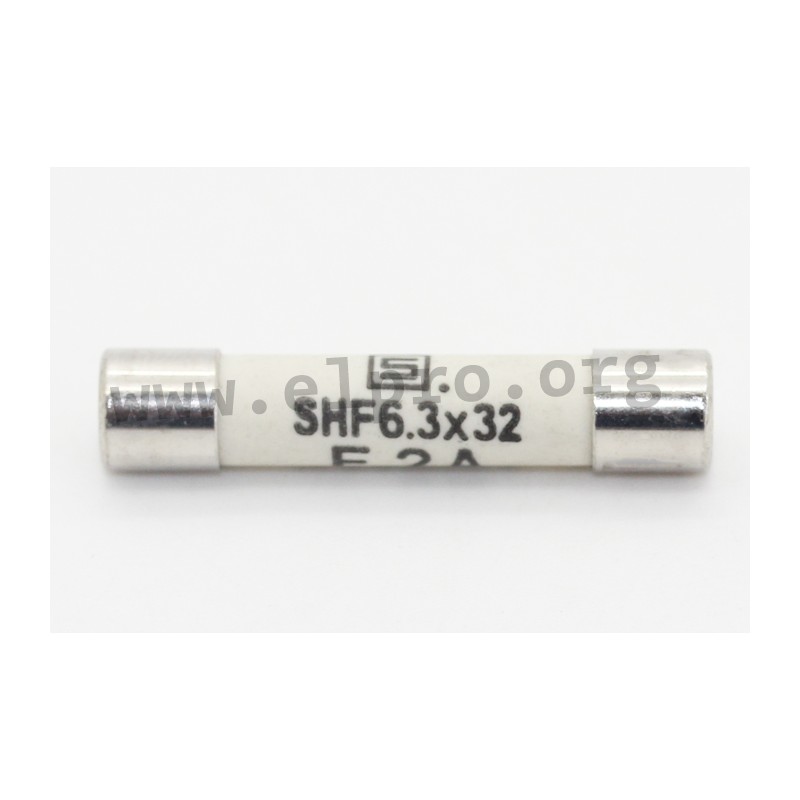

Schurter fuse link series SHF 6,3x32

  • fast acting (F) fuse links in a 6,3x32mm housing
  • with a breaking capacity of more than 1500A
  • comply with UL 248-14
  • can be used as primary protection
  • tube made of ceramics and end caps made of tinned copper
  • suitable for power electronics, frequency converters, DC applications, power supplies and 3-phase applications
  • rated voltage: 500V AC, 500V DC

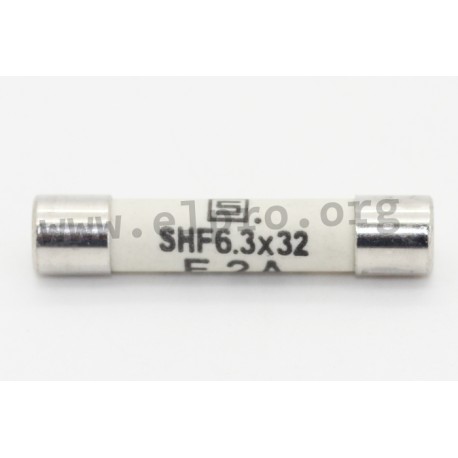

8020.5065, Schurter fuse links, 6,3x32mm, fast acting, 500V, SHF 6,3x32 series

8020.5065

235150 8020.5065 8020.5065 Schurter fuse link series SHF 6,3x32. fast acting (F) fuse links in a 6,3x32mm housing with a breaking capacity of more than 1500A comply with UL 248-14 can be used as primary protection tube made of ceramics and end caps made of tinned copper suitable for power electronics, frequency converters, DC applications, power supplies and 3-phase applications rated voltage: 500V AC, 500V DC

Specifications

manufacturer
Manufacturer's name 8020.5065
Nominal voltage [V DC] 500
Nominal voltage [V AC] 500
Voltage drop, max. [mV] 1400
Melting integral [A²s] 0,14
Rated current [A] 0,5
Data Sheet

Unit price

0,559 €

Stock: 10
Next incoming goods:
CW 48/2024
500 units

Further delivery:
CW 13/2025

Minimum order quantity 10 units or
multiples of 10.
