1241.3011

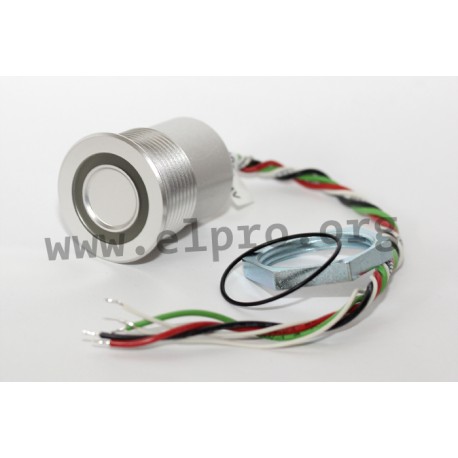

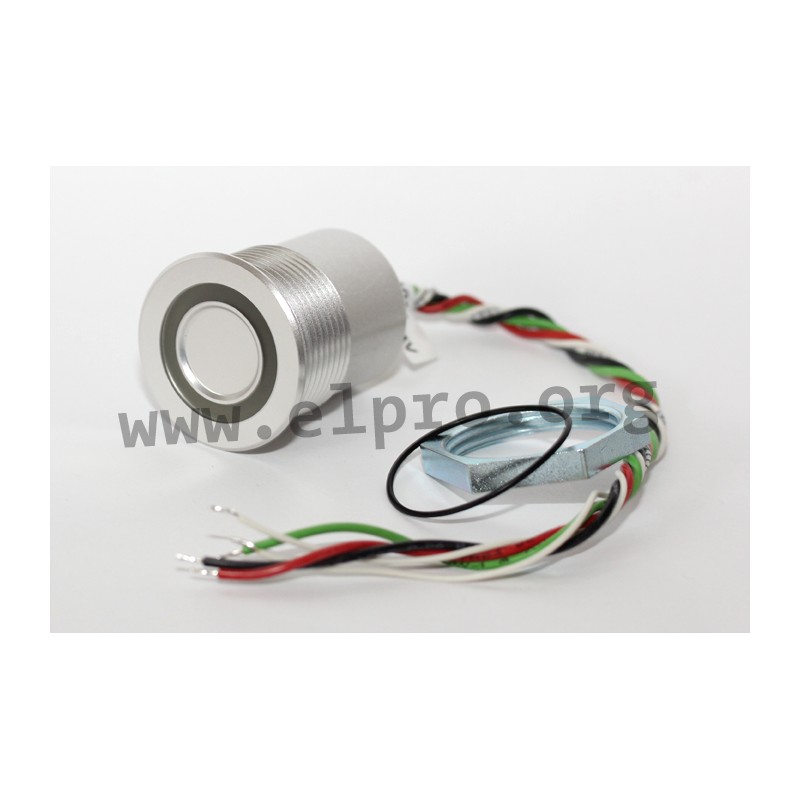

Schurter Piezo pushbutton series PSE NO

Vandalproof Piezo push button switches with 1x normally open contact and a long service life. These momentary switches have an excellent quality and are IP69K rated. They are suitale for high-pressure cleaners, are sea-water resistant and have a pin, plug-in or stranded wire connection. We offer the following types of this Schurter series: 1241.2411.3, 1241.2411.8, 1241.3005, 1241.3006, 2141.3008, 1241.3258 and 1241.3011.

  • contact: 1x Schließer
  • panel cut-out: Ø20 to 26mm
  • maximal switching voltage: 42V AC / 60V DC
  • maximal switching current: 100mA
  • maximal switching capacity: 1W
  • operating temperature: -40 to +85°C
1241.3011

1241.3011

32635 1241.3011 1241.3011 Schurter Piezo pushbutton series PSE NO. Vandalproof Piezo push button switches with 1x normally open contact and a long service life. These momentary switches have an excellent quality and are IP69K rated. They are suitale for high-pressure cleaners, are sea-water resistant and have a pin, plug-in or stranded wire connection. We offer the following types of this Schurter series: 1241.2411.3, 1241.2411.8, 1241.3005, 1241.3006, 2141.3008, 1241.3258 and 1241.3011. contact: 1x Schließer panel cut-out: Ø20 to 26mm maximal switching voltage: 42V AC / 60V DC maximal switching current: 100mA maximal switching capacity: 1W operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name 1241.3011
Case colour natural-coloured
Connections stranded wire
Illumination ring red/green
Switching current [A] 0,1
Panel cut-out [mm] Ø 27
Data Sheet

Unit price

54,29 €

Stock: 17
Further delivery:
CW 09/2025
