1241.3020.M
* hermatically sealed
* seawater suitable
* can be cleaned with high-pressure cleaners
* high quality leads to very high cycling rate
* housing material: anodized aluminium
* housing colours: red, green and alu natural
* with ring and point illumination or not illuminated
* with pin, quick connect or flexible wire terminal
* material
housing: anodized aluminium
contacts: silver-plated
* switching voltage, max.: 42VAC/60VDC
* switching current, max.: 100mA
* switching capacity, max.: 1W
* contact resistance: <20mΩ
* capacity: 30pF
* NΩ pulse time: 20...1000ms
* contact configuration: polarity-free
* contact: NΩ
* supply voltage LED: 24V
* operating force: 1-3N
* operating path: 0.002mm
* operating life/cycles: 20x106
* temperature range: -40...+85°C
* protection against mechanical strain DIN EN 50102, MSM19, 22: IK02
* protection class: IP69K

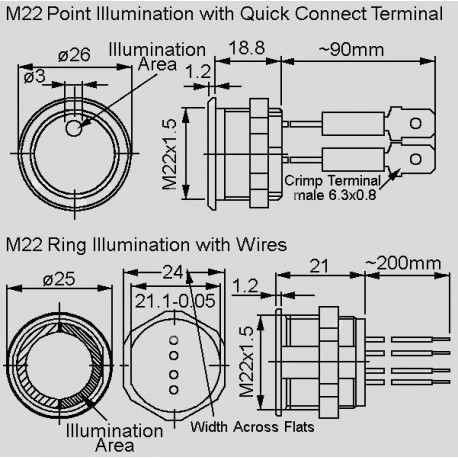

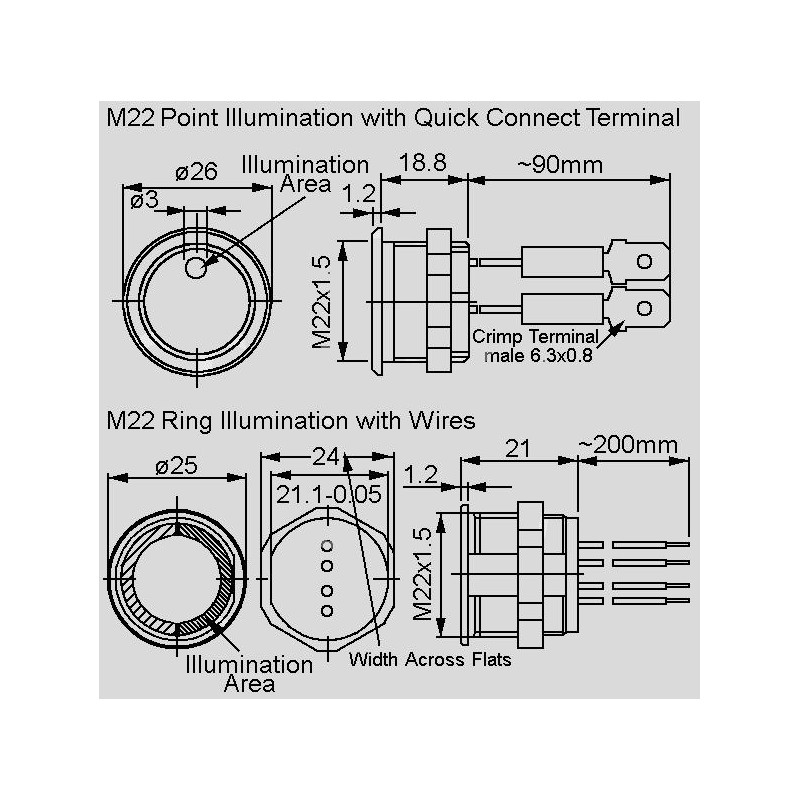

for Ø20 to 26mm panel cutouts
* protection class IP69K* hermatically sealed
* seawater suitable
* can be cleaned with high-pressure cleaners
* high quality leads to very high cycling rate
* housing material: anodized aluminium
* housing colours: red, green and alu natural
* with ring and point illumination or not illuminated
* with pin, quick connect or flexible wire terminal
* material
housing: anodized aluminium
contacts: silver-plated
* switching voltage, max.: 42VAC/60VDC
* switching current, max.: 100mA
* switching capacity, max.: 1W
* contact resistance: <20mΩ
* capacity: 30pF
* NΩ pulse time: 20...1000ms
* contact configuration: polarity-free
* contact: NΩ
* supply voltage LED: 24V
* operating force: 1-3N
* operating path: 0.002mm
* operating life/cycles: 20x106
* temperature range: -40...+85°C
* protection against mechanical strain DIN EN 50102, MSM19, 22: IK02
* protection class: IP69K
1241.3020.M
Specifications
| manufacturer | Schurter |
| Manufacturer's name | 1241.3020.M |
| Case colour | natural-coloured |
| Connections | plug connection |
| Illumination | dot red |
| Switching current [A] | 0,1 |
| Panel cut-out [mm] | Ø 26 |
