0034.6924

Schurter fuse series MXT250

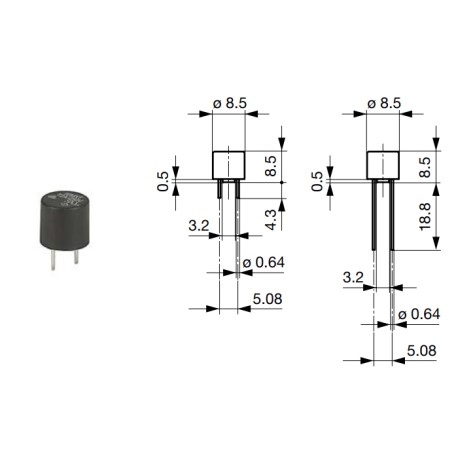

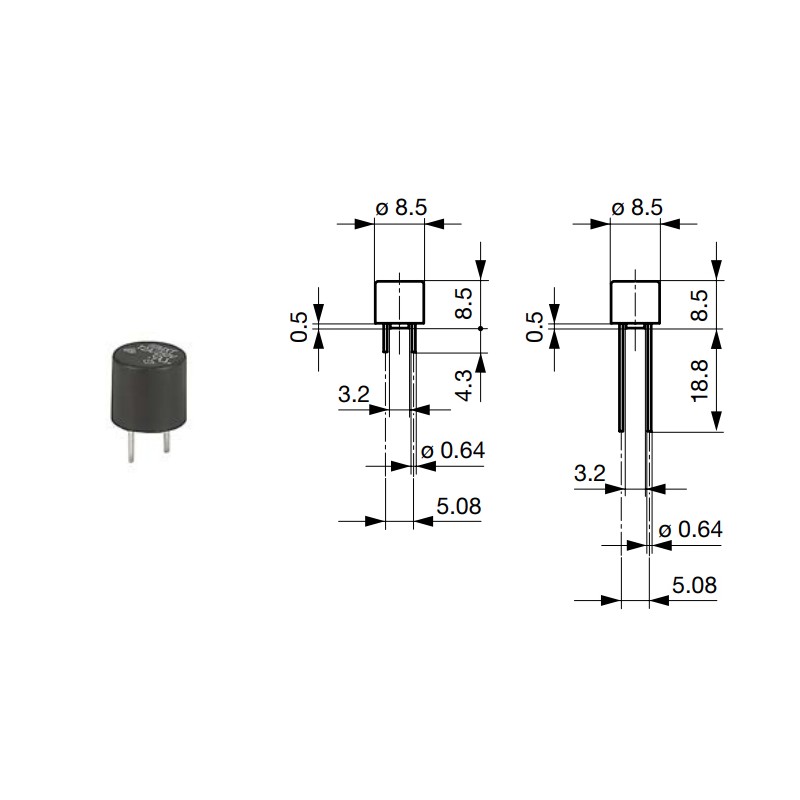

Miniature fuses in a round plastic housing (UL94V-0) with a diameter of Ø8,5mm and a breaking capacity of 100A. These fuse links have short terminals made of tin-plated copper (4,3mm/Ø0,64mm) and are suitable for PCB mounting (soldering/plug-in). They have a time lag characteristic and comply with IEC60127-3/4 as well as IEC62368-1. We offer the following types of this Schurter series: 0034.6914, 0034.6915, 0034.6916, 0034.6917, 0034.6918, 0034.6919, 0034.6920, 0034.6921, 0034.6922, 0034.6923, 0034.6924 and 0034.6925.

  • rated voltage: 250V AC
  • rated current: 0,8 to 10A
  • breaking capacity: 100A
  • operating temperature: -40 to +85°C
  • bulk
0034.6924, Schurter miniature fuse links, time lag, radial, short terminals, MXT250 series

0034.6924

234969 0034.6924 0034.6924 Schurter fuse series MXT250. Miniature fuses in a round plastic housing (UL94V-0) with a diameter of Ø8,5mm and a breaking capacity of 100A. These fuse links have short terminals made of tin-plated copper (4,3mm/Ø0,64mm) and are suitable for PCB mounting (soldering/plug-in). They have a time lag characteristic and comply with IEC60127-3/4 as well as IEC62368-1. We offer the following types of this Schurter series: 0034.6914, 0034.6915, 0034.6916, 0034.6917, 0034.6918, 0034.6919, 0034.6920, 0034.6921, 0034.6922, 0034.6923, 0034.6924 and 0034.6925. rated voltage: 250V AC rated current: 0,8 to 10A breaking capacity: 100A operating temperature: -40 to +85°C bulk

Specifications

manufacturer
Manufacturer's name 0034.6924
Voltage drop, max. [mV] -
Melting integral [A²s] 397
Rated current [A] 8
Power dissipation [mW] -
Data Sheet

Unit price

0,315 €

Stock: 830
Further delivery:
CW 03/2025

Minimum order quantity 10 units or
multiples of 10.
