Manufacturers

0034.6721

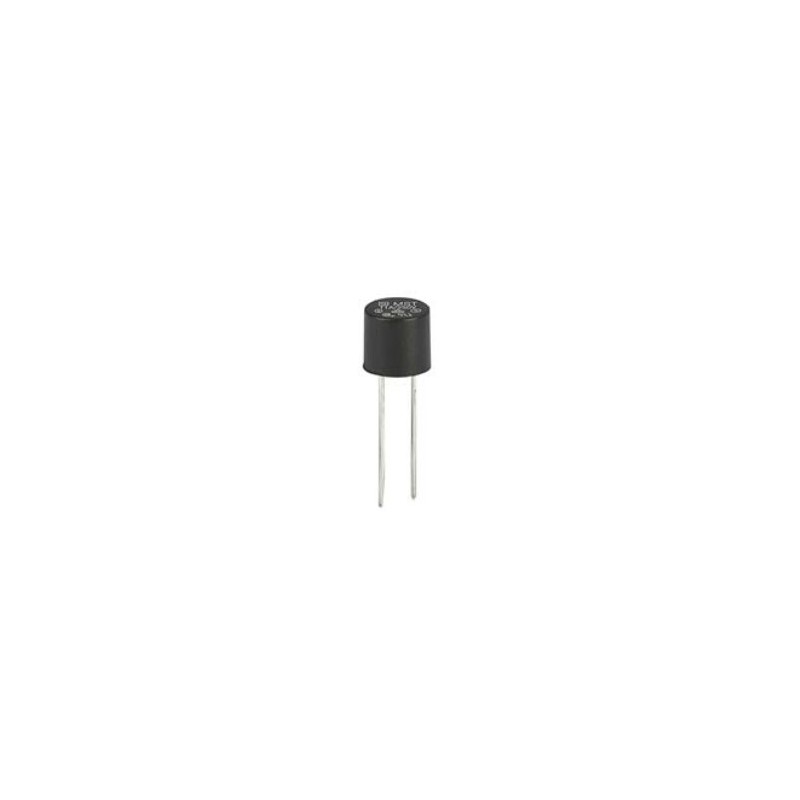

Schurter fuse series MST250

  • time lag radial type miniature fuse links (Ø8,5mm)
  • housing made of thermoplastic (UL94V-0)
  • with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals
  • can be soldered or plugged in
  • wire diameter: 0,64mm
  • rated voltage: 250V AC / 63V DC
  • bulk

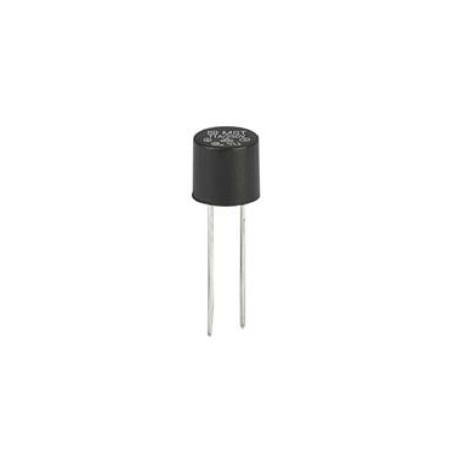

0034.6721, Schurter miniature fuse links, time lag, radial, short and long terminals, MST250 series

0034.6721

234959 0034.6721 0034.6721 Schurter fuse series MST250. time lag radial type miniature fuse links (Ø8,5mm) housing made of thermoplastic (UL94V-0) with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals can be soldered or plugged in wire diameter: 0,64mm rated voltage: 250V AC / 63V DC bulk

Specifications

manufacturer
Manufacturer's name 0034.6721
Voltage drop, max. [mV] 100
Melting integral [A²s] 80
Rated current [A] 4
Power dissipation [mW] 1400
Data Sheet

Unit price

0,318 €

Stock: 1090
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
