0034.6720

Schurter fuse series MST250

  • time lag radial type miniature fuse links (Ø8,5mm)
  • housing made of thermoplastic (UL94V-0)
  • with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals
  • can be soldered or plugged in
  • wire diameter: 0,64mm
  • rated voltage: 250V AC / 63V DC
  • bulk

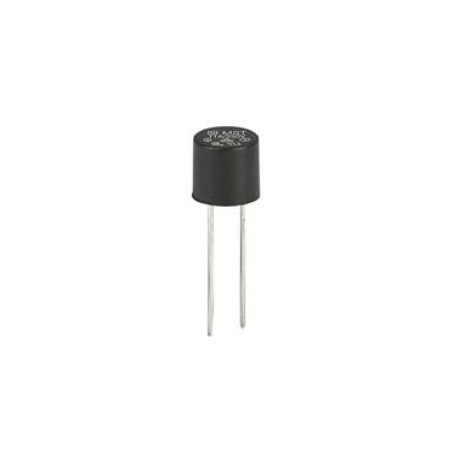

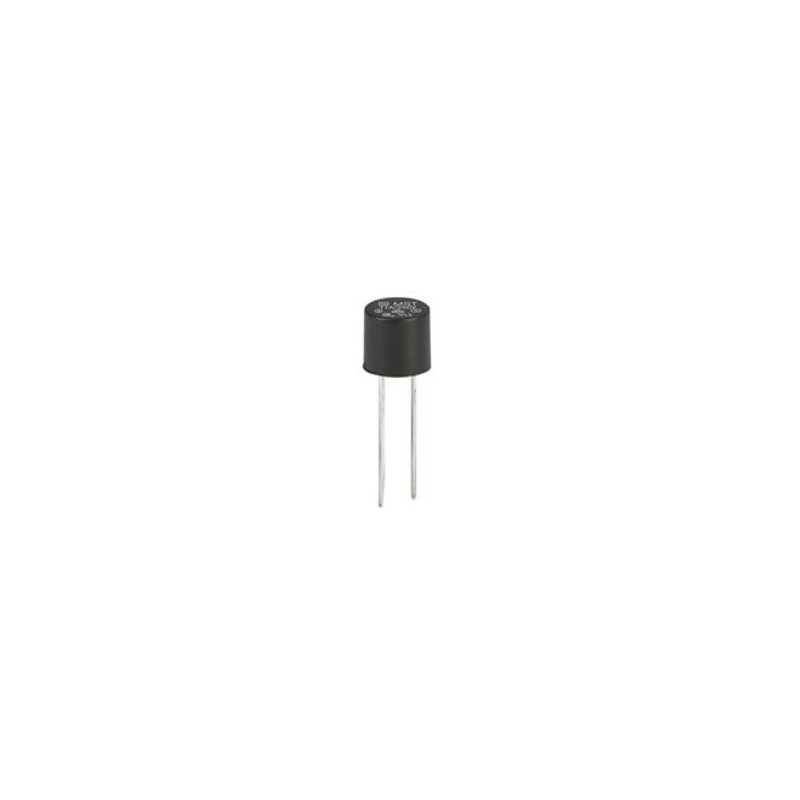

0034.6720, Schurter miniature fuse links, time lag, radial, short and long terminals, MST250 series

0034.6720

234958 0034.6720 0034.6720 Schurter fuse series MST250. time lag radial type miniature fuse links (Ø8,5mm) housing made of thermoplastic (UL94V-0) with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals can be soldered or plugged in wire diameter: 0,64mm rated voltage: 250V AC / 63V DC bulk

Specifications

manufacturer
Manufacturer's name 0034.6720
Voltage drop, max. [mV] 100
Melting integral [A²s] 76
Rated current [A] 3,15
Power dissipation [mW] 1200
Data Sheet

Unit price

0,313 €

Stock: 710
Further delivery:
CW 03/2025

Minimum order quantity 10 units or
multiples of 10.
