0034.6710

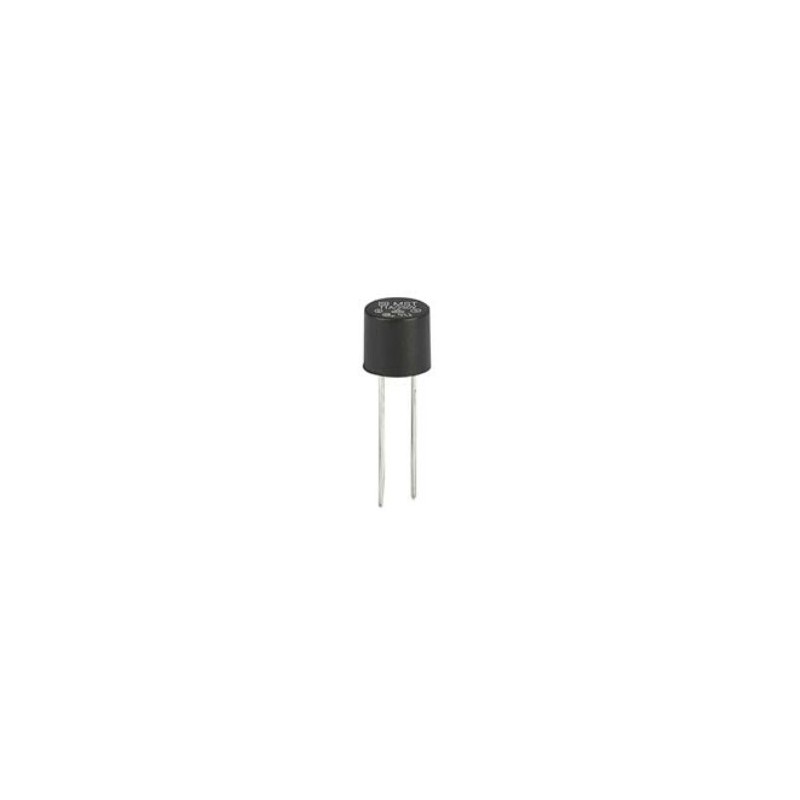

Schurter fuse series MST250

  • time lag radial type miniature fuse links (Ø8,5mm)
  • housing made of thermoplastic (UL94V-0)
  • with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals
  • can be soldered or plugged in
  • wire diameter: 0,64mm
  • rated voltage: 250V AC / 63V DC
  • bulk

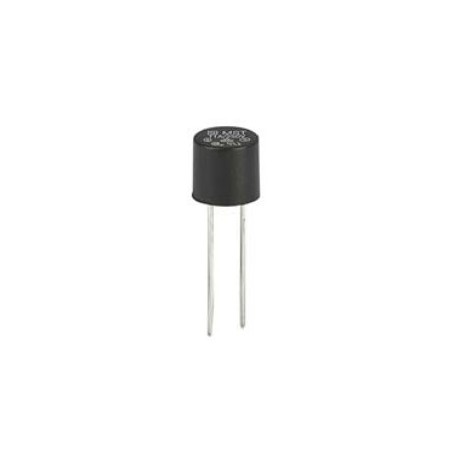

0034.6710, Schurter miniature fuse links, time lag, radial, short and long terminals, MST250 series

0034.6710

234952 0034.6710 0034.6710 Schurter fuse series MST250. time lag radial type miniature fuse links (Ø8,5mm) housing made of thermoplastic (UL94V-0) with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals can be soldered or plugged in wire diameter: 0,64mm rated voltage: 250V AC / 63V DC bulk

Specifications

manufacturer
Manufacturer's name 0034.6710
Voltage drop, max. [mV] 220
Melting integral [A²s] 0,8
Rated current [A] 0,315
Power dissipation [mW] 250
Data Sheet

Unit price

0,322 €

Stock: 840
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
