0034.6623

Schurter fuse series MST250

  • time lag radial type miniature fuse links (Ø8,5mm)
  • housing made of thermoplastic (UL94V-0)
  • with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals
  • can be soldered or plugged in
  • wire diameter: 0,64mm
  • rated voltage: 250V AC / 63V DC
  • bulk

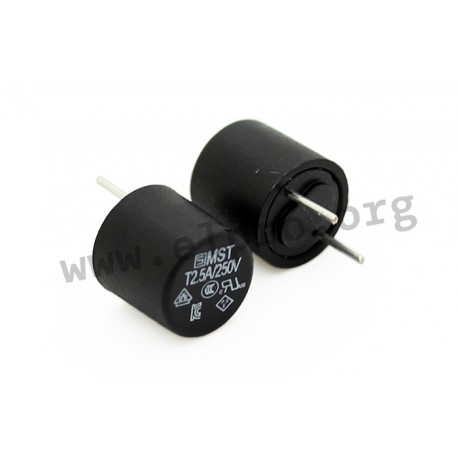

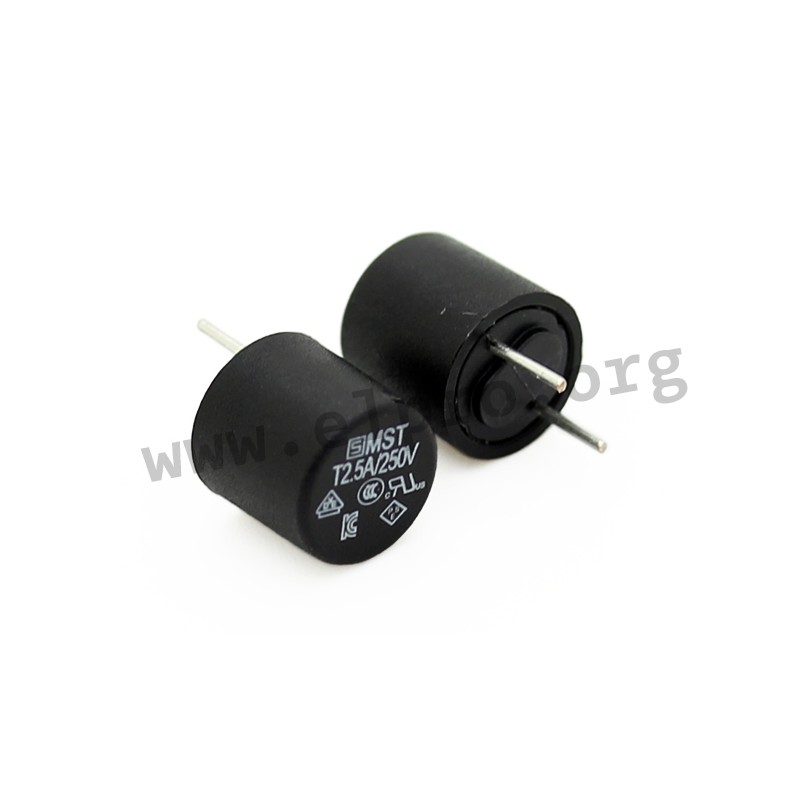

0034.6623, Schurter miniature fuse links, time lag, radial, short and long terminals, MST250 series

0034.6623

234945 0034.6623 0034.6623 Schurter fuse series MST250. time lag radial type miniature fuse links (Ø8,5mm) housing made of thermoplastic (UL94V-0) with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals can be soldered or plugged in wire diameter: 0,64mm rated voltage: 250V AC / 63V DC bulk

Specifications

manufacturer
Manufacturer's name 0034.6623
Voltage drop, max. [mV] -
Melting integral [A²s] 360
Rated current [A] 6,3
Power dissipation [mW] -
Data Sheet

Unit price

0,292 €

Stock: 20
Next incoming goods:
CW 48/2024
500 units

Further delivery:
CW 03/2025

Minimum order quantity 10 units or
multiples of 10.
