0034.6603

Schurter fuse series MST250

  • time lag radial type miniature fuse links (Ø8,5mm)
  • housing made of thermoplastic (UL94V-0)
  • with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals
  • can be soldered or plugged in
  • wire diameter: 0,64mm
  • rated voltage: 250V AC / 63V DC
  • bulk

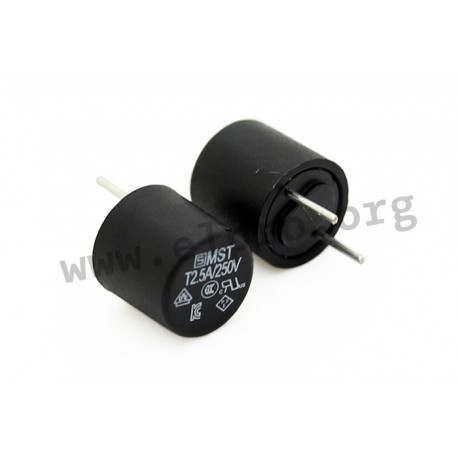

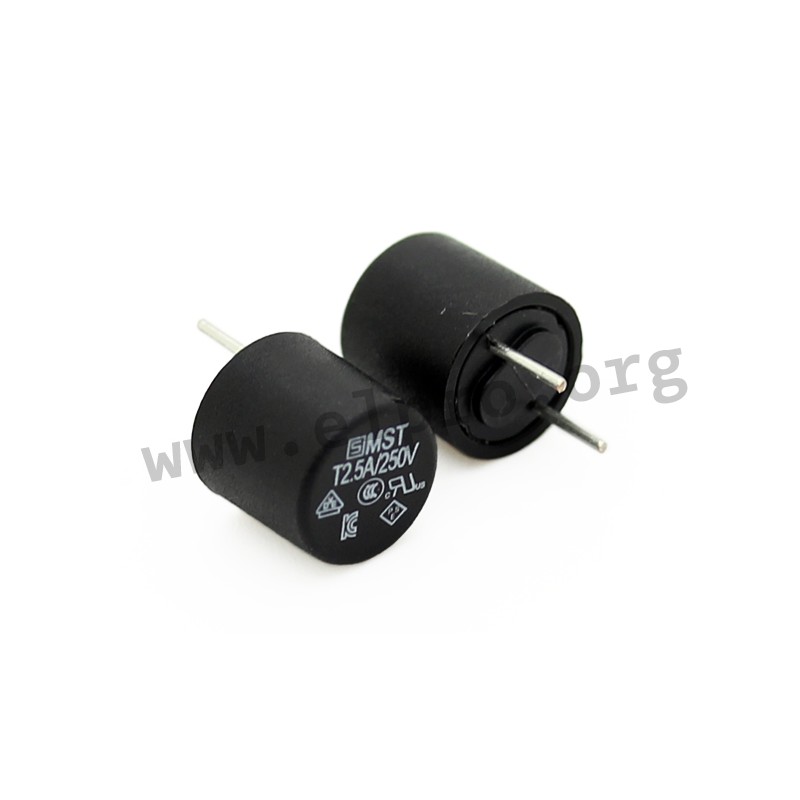

0034.6603, Schurter miniature fuse links, time lag, radial, short and long terminals, MST250 series

0034.6603

234925 0034.6603 0034.6603 Schurter fuse series MST250. time lag radial type miniature fuse links (Ø8,5mm) housing made of thermoplastic (UL94V-0) with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals can be soldered or plugged in wire diameter: 0,64mm rated voltage: 250V AC / 63V DC bulk

Specifications

manufacturer
Manufacturer's name 0034.6603
Voltage drop, max. [mV] 480
Melting integral [A²s] 0,05
Rated current [A] 0,063
Power dissipation [mW] 160
Data Sheet

Unit price

0,474 €

Stock: 1150
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
